3 in 1 Soldering Station
ZD-8951
Features
- 3 in 1: soldering station, fume extractor, LED light
- Temperature range: 160–480°C with digital display
- PTC rapid heating with °C/°F conversion function
- 23W fume extractor, air flow 1m³/min max
- Includes iron stand, wire stand & 10g solder

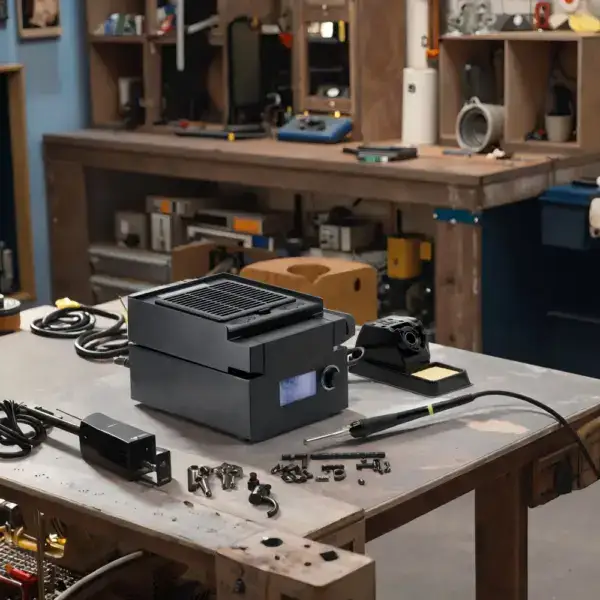

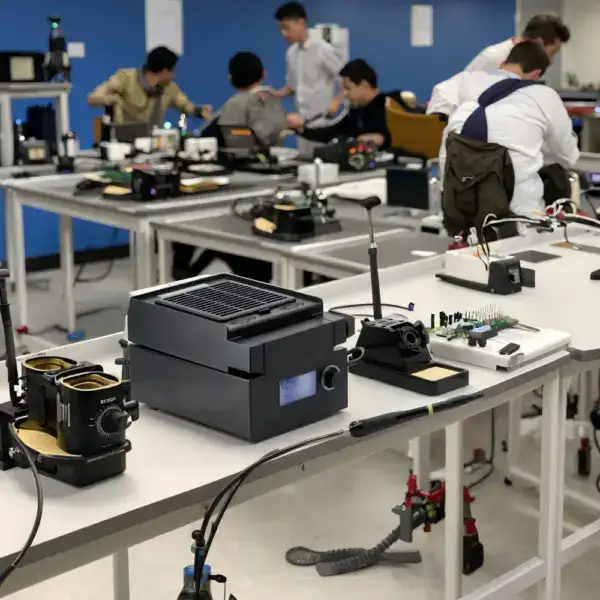

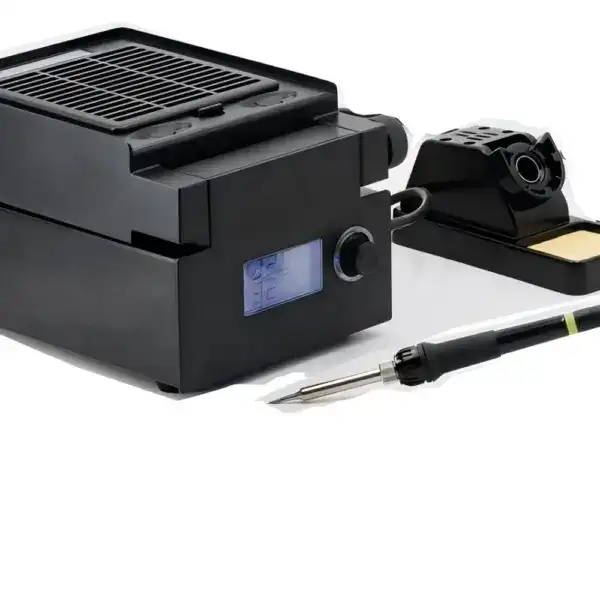

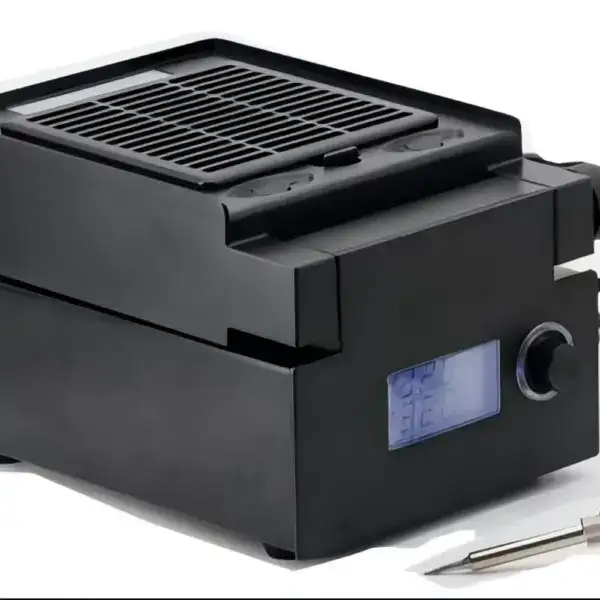

The ZD-8951 3 in 1 Soldering Station combines a temperature-controlled soldering iron, fume extractor, and LED lighting in one compact unit, complete with soldering iron stand, soldering wire stand, and 10g soldering wire.
Features
- Temperature range: 160–480°C (320–896°F) with PTC rapid heating
- Digital display with backlight & °C/°F conversion
- Adjustable temperature via knob
- Fume extractor: air flow 1m³/min (max), power 23W
- Built-in LED lighting
Specifications
|
Code
|
Voltage
|
|---|---|
|
89-5101
|
110–130V
|
|
89-5102
|
220–240V
|
Spare Tips for Soldering Iron
|
Code
|
Model
|
Note
|
|---|---|---|
|
79-1917
|
TIP N9-16
|
High quality
|
|
79-1927
|
TIP N9-26
|
|
|
79-1937
|
TIP N9-36
|
|
|
79-1947
|
TIP N9-46
|
|
|
79-1957
|
TIP N9-56
|
Spare Soldering Iron
|
Model
|
Code
|
Voltage
|
Power
|
Note
|
|---|---|---|---|---|
|
ZD-415TB
|
88-415TB
|
24V
|
60W (rated 130W)
|
5 pins, sleep function
|
Spare Heater
|
Code
|
Voltage
|
Power
|
Use for
|
Note
|
|---|---|---|---|---|
|
78-415T
|
24V
|
60W
|
ZD-415TB
|
With temperature probe
|
Accessories
|
Item
|
Code
|
Size
|
|---|---|---|
|
Activated Carbon Filter
|
79-7202
|
120×120×10mm
|
|
Sponge
|
79-7304
|
42×51mm
|
1 piece of activated carbon filter included. Optional soldering wire stand: Model ZD-11L
Packaging
|
Model
|
Package
|
Qty/ctn
|
Carton Size
|
N.W.
|
G.W.
|
|---|---|---|---|---|---|
|
ZD-8951
|
Gift box
|
2 sets
|
54.5×28×19.5cm
|
7.5kg
|
8.5kg
|
|
Input Voltage
|
110–130V / 110-240V
|
|
Power Source
|
Plug Powered
|
|
Temperature
|
160°C – 480°C
|
|
Fume Extractor Air flow
|
1m³/min (max)
|
|
Fume Extractor Power
|
23W
|
|
Weight
|
7.5KG
|
|
Warranty
|
1 Year
|
|
Packaging Details
|
Gift Box
|
|
Selling Units
|
Single Item
|
|
Port of Dispatch
|
Ningbo
|
|
Supply Ability
|
500 Pieces per Day
|
