- 2 in 1 soldering iron & hot air station
- Temperature range 160°C – 480°C, microprocessor controlled
- Dual LCD displays current & set temperature
- Adjustable air volume 3L/min to 24L/min
- ESD-safe models available; RoHS compliant

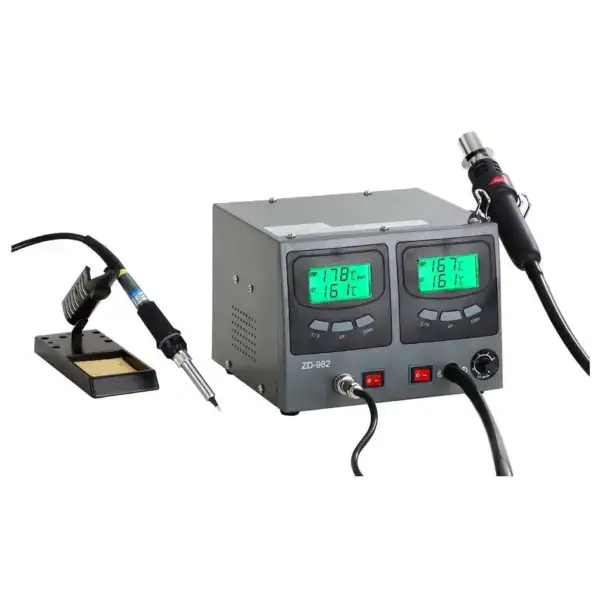

ZD-982 2-in-1 Soldering Station
ZD-982
Features
| Color | Dark Grey / Customizable |
| Customized Support | OBM, ODM, OEM |
| Operation | Easy & Comfortable |
| Voltage Supply | 110–130V AC / 220–240V AC |
| Total Power Consumption | 60W + 320W |
| Main Fuse | 3.15A |
| Hot Air Volume | 3L/min – 24L/min |
| Temperature | 160℃ – 480℃ |
| Package | Gift Box |
| Port of Dispatch | Ningbo / Shanghai |
| Selling Unit | Single Item |
| Warranty | 1 Year |
The ZD-982 combines a soldering iron and hot air rework tool in one station for soldering and desoldering work on surface-mounted ICs, PCBs and components. The tables below distinguish its voltage and ESD versions and identify the listed replacement parts.
Key Features
- Dual two-line LCD readouts display current and set temperatures simultaneously in °C or °F.
- Up/down push buttons adjust the temperature setting.
- Hot air flow is continuously adjustable from 3 to 24 L/min.
- Microprocessor-controlled temperature is adjustable from 160°C to 480°C.
- User-friendly handle; ESD-safe versions are available.
Specifications
| Code | Voltage | Note |
|---|---|---|
| 89-8211 | 110–130 V | |
| 89-8212 | 220–240 V | |
| 89-8213 | 110–130 V | ESD |
| 89-8214 | 220–240 V | ESD |
Spare Tips for Soldering Iron
| Code | Model | Note |
|---|---|---|
| 79-1416 | TIP N4-1 | High Quality |
| 79-1426 | TIP N4-2 | |
| 79-1436 | TIP N4-3 | |
| 79-1446 | TIP N4-4 |
Spare Soldering Iron
| Model | Voltage | Power | Note |
|---|---|---|---|
| ZD-415B | 24 V | 60 W (130 W heat-up rating) | 6-pin, with sleep function |
Spare Heater
| Code | Voltage | Power | Use for | Note |
|---|---|---|---|---|
| 78-415B | 24 V | 60 W | ZD-415B | With temperature probe |
| 79-939A | 110–130 V | 320 W | ZD-982 | |
| 79-939B | 220–240 V | 320 W |
Included Spare Parts: Nozzles
79-3901, 79-3907, 79-3902, 79-3903, 79-3941, 79-3942 and 79-3940.
Sponge
Code 79-7305 — 65 × 50 mm.
Packaging
| Model | Package | Q’ty/ctn | Carton Size | N.W. | G.W. |
|---|---|---|---|---|---|
| ZD-982 | Gift box | 1 set | 36 × 26 × 24 cm | 5 kg | 6 kg |
