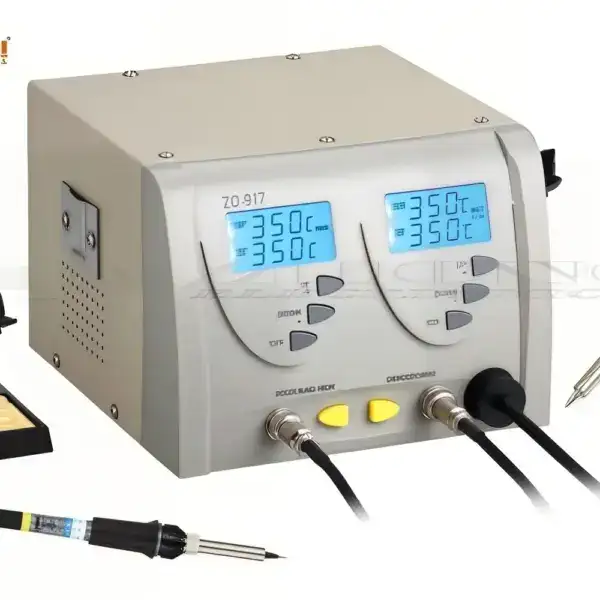

2 in 1 Soldering Station
ZD-917
Features
- 2 in 1 soldering & desoldering station
- 160°C–480°C adjustable, microprocessor-controlled temperature
- Dual LCD displays tip & set temperature
- Operates independently or together, PTC heating
| Input Voltage | 110–130V / 220–240V |
| Output Power | 60W / 80W (Heat up rating 130W/200W) |
| Output Temperature | 160–480°C |
| Heating Element | Ceramic |
| Dimensions | 220 × 249 × 170 mm |
| Weight | 4.5 kg |
| Tip | Replaceable |
| Operation | Easy & Comfortable |
| Certificate | CE / EMC / GS / RoHS |
| Package | Gift Box |
| Warranty | 1 Year |
Two Verified Tool Functions
The ZD-917 combines two confirmed functions in one station: soldering and desoldering. The two tools can operate independently or together, supporting production and service work.
Temperature and Control Specifications
The ZD-917 uses microprocessor-controlled temperature adjustment from 160°C to 480°C. Its dual two-line LCD displays show both the tip temperature and the set point, with °C / °F display options. Temperature is adjusted with push-button up/down controls, and the station uses a PTC heating element.
The product specification lists 60W / 80W output power, with heat-up ratings of 130W / 200W.
Handpieces, Accessories and Trade Supply
Station codes and voltage options
| Code | Voltage | Note |
|---|---|---|
| 89-1711 | 110–130V | — |
| 89-1712 | 220–240V | — |
| 89-1713 | 110–130V | ESD |
| 89-1714 | 220–240V | ESD |
Spare tips for soldering iron
| Code | Model |
|---|---|
| 79-1416 | TIP N4-1 |
| 79-1426 | TIP N4-2 |
| 79-1436 | TIP N4-3 |
| 79-1446 | TIP N4-4 |
Spare gun tips
| Code | Model |
|---|---|
| 79-1516 | TIP N5-1 |
| 79-1526 | TIP N5-2 |
| 79-1536 | TIP N5-3 |
Spare soldering iron
| Model | Voltage | Power | Note |
|---|---|---|---|
| ZD-415A | 24V | 60W (Heat-up rating 130W) | 4 pins, no sleep function |
Spare desoldering gun
| Code | Voltage | Power | Note |
|---|---|---|---|
| ZD-553P | 24V | 80W (Heat-up rating 200W) | 6 pins, no sleep function |
Spare heaters
| Code | Voltage | Power | Use for | Note |
|---|---|---|---|---|
| 78-415B | 24V | 60W | ZD-415A/B | With temperature probe |
| 78-551B | 24V | 80W | ZD-553P | — |
Other accessories
- Spare filter: Ø16.8, Code 79-5518 for the spare gun
- Spare filter: Ø20.8, Code 79-5519 for the desoldering station
- Desoldering-gun cleaning tools: 79-5511 (Ø0.7mm), 79-5512 (Ø0.9mm), 79-5513 (Ø1.2mm)
- Sponge: 79-7305, 65 × 50mm
- Listed spare parts: N5-1, N5-3
Packaging
| Model | Package | Qty/Ctn | Carton Size | N.W. | G.W. |
|---|---|---|---|---|---|
| ZD-917 | Gift box | 1 set | 36 × 29 × 23 cm | 4.5 kgs | 5.5 kgs |
