3-in-1 Rework Station
ZD-8966
Features
- Compact 3-in-1 rework station
- Built-in fume extractor for a cleaner, eco-friendly workspace
- Fast-heating iron with stable temperature control
- Hot air desoldering with 4 interchangeable tips
- Strong vacuum suction pump with continuous airflow
- Large LED digital display
| Product Specifications | |
| Power | 400 W |
| Voltage | 110–130V / 220–240 V |
| Temperature Range | 160–480 °C |
| Tip Type | Conical |
| Display | Digital |
| Heat-Up Speed | Quick |
| Suction Force | 24 L/min |
| Color | Black |
| Auto-Hibernate | 5 minutes of inactivity |
| Application | Electronics Repair, Home Use, Machinery Repair, Manufacturing Plant |
| Packaging, Warranty & Services | |
| Certification | CE, EMC, GS, RoHS |
| Package | Gift Box |
| Warranty | 2 Years |
| Customized Support | ODM, OEM |

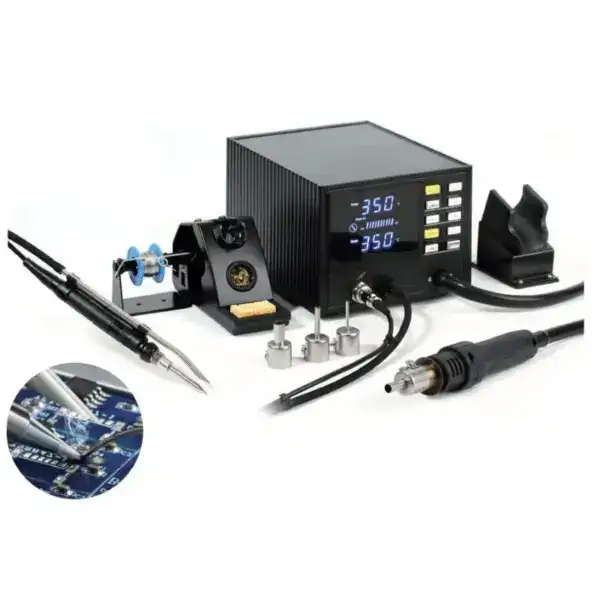

The ZD-8966 combines a soldering iron, hot-air desoldering gun and fume extractor in one compact station for electronics soldering and rework. The available voltage and ESD versions, nozzle sizes and replacement parts are listed below to help buyers identify the required configuration.
Key Features
- Three functions in one station: Soldering, hot-air desoldering and fume extraction.
- Fume extraction during soldering: The extractor uses a vacuum suction pump with continuous airflow to draw away fumes produced during soldering work.

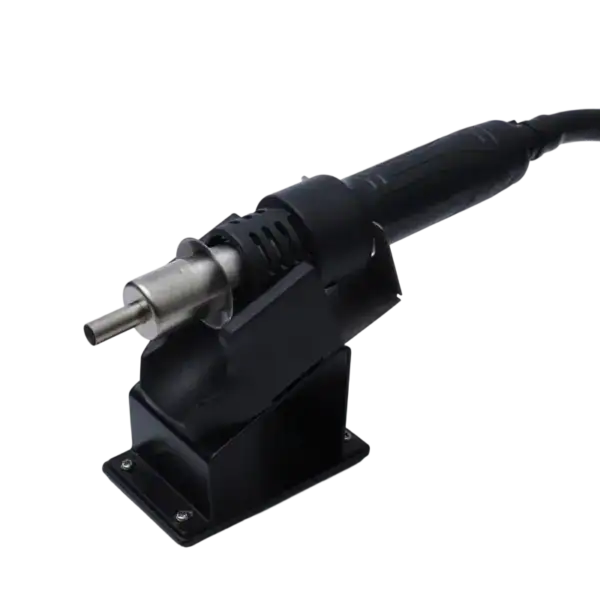

- Hot-air desoldering: Four nozzle sizes are listed for work on electronic components and chips.
- Soldering iron with integrated heater: Designed for quick heating and stable temperature control during operation.
- Large LED digital display: Provides an at-a-glance view of operating information.
Voltage and ESD Versions
| Code | Voltage | Note |
|---|---|---|
| 89-6601 | 110–130V | |
| 89-6602 | 220–240V | |
| 89-6603 | 110–130V | ESD |
| 89-6604 | 220–240V | ESD |
Hot-Air Nozzles and Included Spare Parts
| Nozzle code | Diameter |
|---|---|
| 79-3901 | Ø2.5 mm |
| 79-3907 | Ø4.4 mm |
| 79-3917 | Ø8 mm |
| 79-3918 | Ø10 mm |
Other included spare-part codes: 79-3940, 79-3941 and 79-3942.
Spare Soldering Iron
| Model | Code | Voltage | Power | Note |
|---|---|---|---|---|
| ZD-422 | 88-4221 | 20V | 70W | 5 pins with sleep function |
Spare Tips — ZD-N12H (Code 87-6200)
| Code | Model | Tip shape |
|---|---|---|
| 79-6201 | N12-1 | Pointy |
| 79-6202 | N12-2 | Extra Pointy |
| 79-6203 | N12-3 | Horseshoe |
| 79-6204 | N12-4 | Flat |
| 79-6205 | N12-5 | Blade |
| 79-6206 | N12-6 | Pointy with Curve |
These N12 tips have a 2-in-1 non-detachable heater-and-tip design.

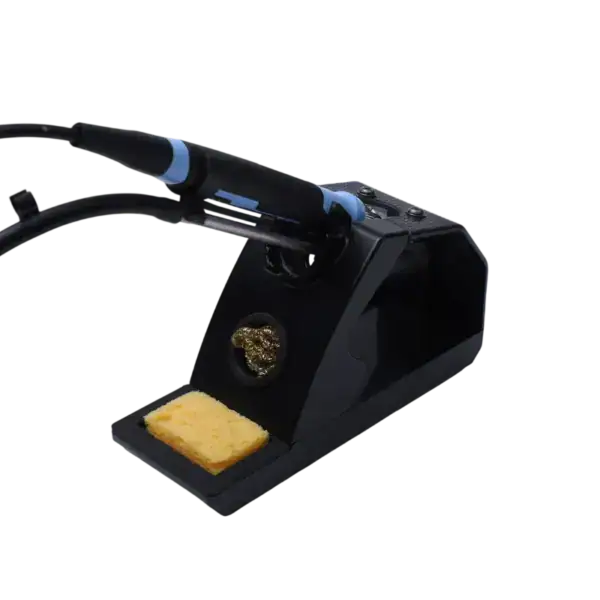

Sponge and Clean Ball
| Item | Code | Size |
|---|---|---|
| Sponge | 79-7309 | 25 × 40 mm |
| Clean ball | 87-0134 |
Packaging
| Model | Package | Qty/Ctn | Carton Size | N.W. | G.W. |
|---|---|---|---|---|---|
| ZD-8966 | Gift box | 1 set | 36 × 29 × 23 cm | 5 kg | 6 kg |
