Cordless Rechargeable Soldering Iron
ZD-20L
Features

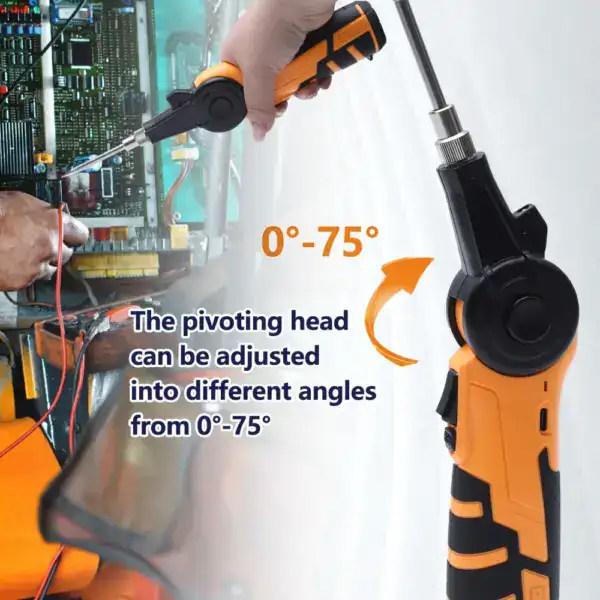

- Pivoting head adjusts from 0°-75°.
- Powered by one 18650 battery.

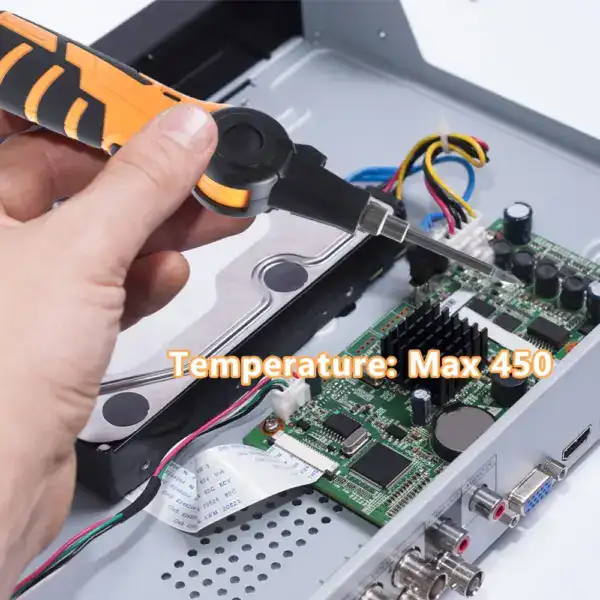

- Reaches up to Max 450°C quickly.

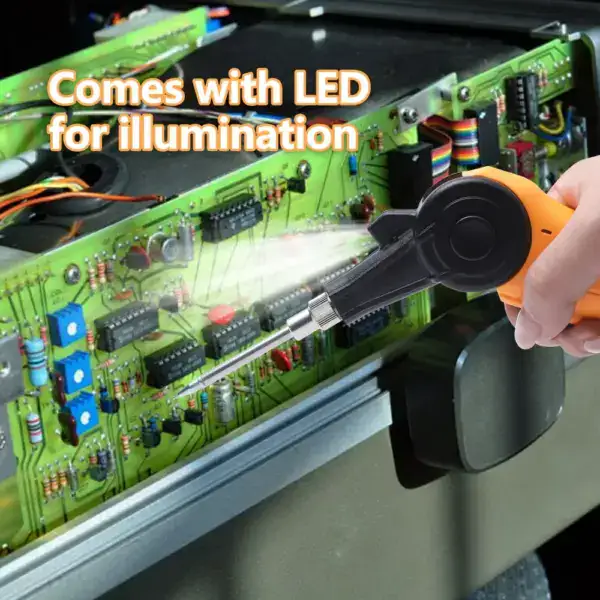

- Built-in LED light for bright illumination.
- Easy to replace 2-in-1 heater tip.
|
Application
|
Home Use, Manufacturing Plants, Electronics Industry, Machinery Repair Shops
|
|
Handpiece Style
|
Pencil Grip
|
|
Heating Speed
|
Quick
|
|
Heater
|
Ceramic
|
|
Operation
|
Easy & Comfortable
|
|
Temperature
|
Max 450°C
|
|
Color
|
Orange or Customized
|
|
Customized Support
|
OEM, ODM, OBM
|
|
Package
|
Double Blister
|
|
Warranty
|
1 Year
|
Battery and Charging Details
Charging Configuration
- Battery Format: One 18650-format battery
- Battery Supply: Optional
- Charging Port: USB-C
- Charging Cable: USB-C cord included
Heating and Tip Configuration
Key Features
- Heating Power: 16W
- Maximum Temperature: 450°C
- Pivoting Head: Adjustable from 0° to 75°
- Built-In LED Light: Illuminates the working area near the tip
- Protective Tip Cap: Included
- Heater-and-Tip Configuration: 2-in-1 non-detachable heater with tip
- Certifications: CE, TÜV Rheinland GS, and RoHS
Spare Heater-and-Tip Units
The ZD-20L uses replaceable 2-in-1 heater-and-tip units with a total length of 87 mm.
| Code | Tip Geometry |
|---|---|
| 79-0021 | R0.5 fine point |
| 79-0022 | Ø2 mm flat/chisel point |
| 79-0023 | 3.8 mm, 45° bevel point |
Cordless Application Fit
The cordless configuration, adjustable 0°–75° pivoting head, and built-in LED light support soldering work requiring different access angles and local illumination.
Packaging Information
| Model | Code | Package | Q’ty/ctn | Carton Size | N.W. | G.W. |
|---|---|---|---|---|---|---|
| ZD-20L | 88-209L | Gift box | 50 sets | 57 × 24 × 30.5 cm | 12 kg | 13 kg |
