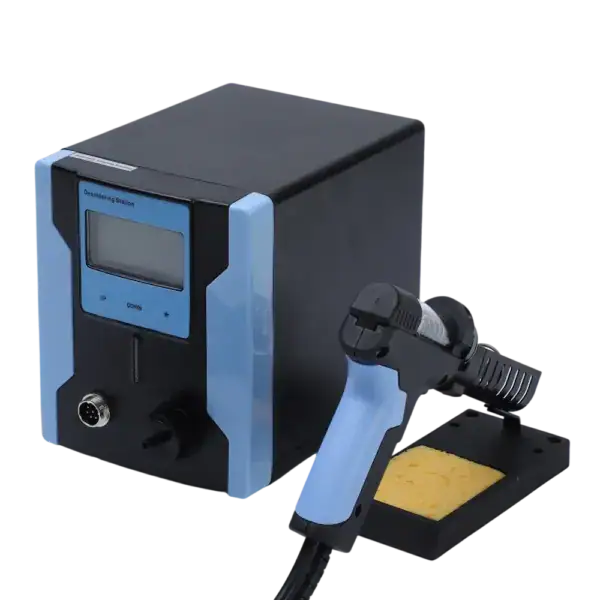

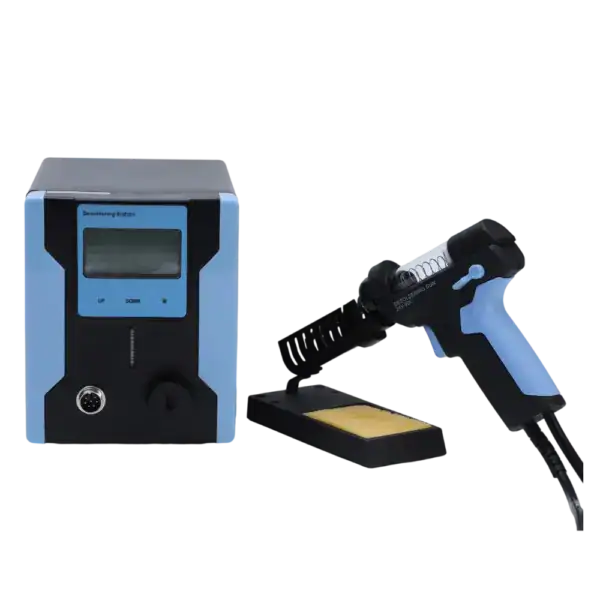

Desoldering Station for Through-Hole Components
ZD-8915
Features
- Temperature range: 160°C – 480°C, fully adjustable
- Two-line LCD displays real-time tip temp & set point
- Comes with ergonomic pistol-grip desoldering gun & stand
- Compatible with lead-free solder
- Available in 110-130V & 220-240V, with optional ESD versions
| Temperature Range | 160°C – 480°C |
| Voltage | 110-130V / 220-240V |
| Display | Two-line LCD |
| Application | Lead-free solder compatible |
| Accessories Included | Desoldering gun, stand |
| Package Type | Gift box |
The ZD-8915 is a temperature-controlled desoldering rework station. Its order codes distinguish the two voltage options and their ESD versions. The tables below identify the station variants and available replacement parts.
Key Features
- Adjustable temperature control: 160–480°C.
- Two-line LCD: displays the tip temperature and set point simultaneously.

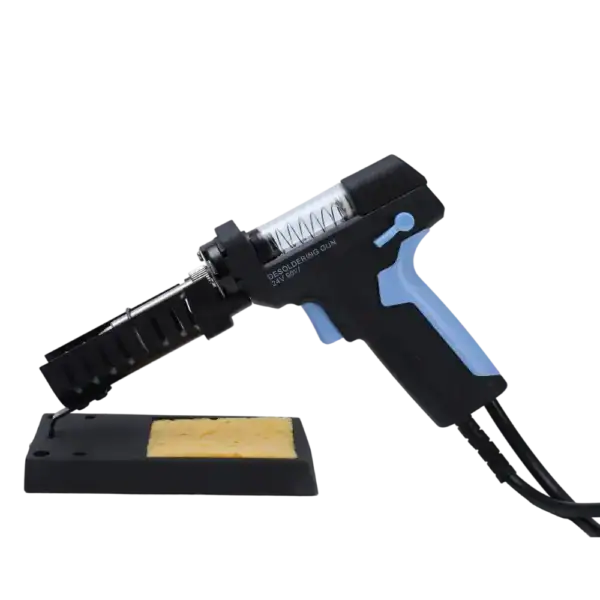

- Trigger-operated pistol-grip gun: designed for solder removal.
- Designed for use with lead-free solder.
- Supplied with a desoldering gun and stand.
Station Versions
| Code | Voltage | Note |
|---|---|---|
| 89-1515 | 110–130V | |
| 89-1516 | 220–240V | |
| 89-1517 | 110–130V | ESD |
| 89-1518 | 220–240V | ESD |
Spare Tips
| Code | Model |
|---|---|
| 79-1566 | TIP N5-6 |
| 79-1576 | TIP N5-7 |
| 79-1586 | TIP N5-8 |
Spare Desoldering Guns
| Model | Voltage | Power | Note |
|---|---|---|---|
| ZD-553A | 24V | 90W (heat-up rating: 200W) | 6 pins; no sleep function |
| ZD-553B | 24V | 90W (heat-up rating: 200W) | 7 pins; sleep function |
Other Replacement and Cleaning Parts
| Part | Code | Specification or use |
|---|---|---|
| Spare heater | 78-5531 | 24V, 90W; for ZD-553A/B; with temperature probe |
| Spare filter | 79-5518 | Ø16.8; for spare gun |
| 79-5519 | Ø20.8; for desoldering station | |
| Desoldering gun cleaning tool | 79-5511 | Ø0.7 mm |
| 79-5512 | Ø0.9 mm | |
| 79-5513 | Ø1.2 mm | |
| Sponge | 79-7305 | 65 × 50 mm |
Packaging
| Model | Package | Quantity per carton | Carton size | Net weight | Gross weight |
|---|---|---|---|---|---|
| ZD-8915 | Gift box | 2 sets | 46 × 24 × 22 cm | 5.5 kg | 6.5 kg |
