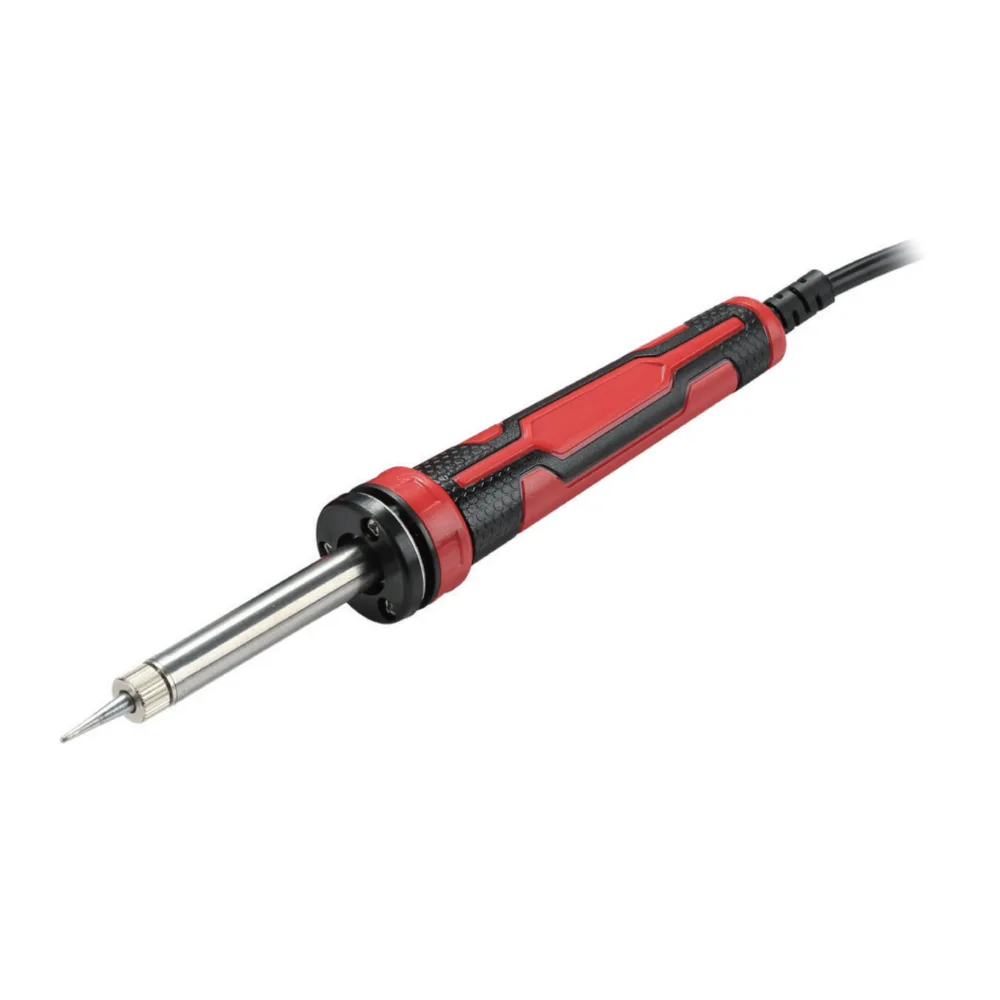

ESD-Safe Soldering Iron
ZD-724C
Features
- ESD Safe for sensitive components.
- Mica heater ensures optimal heating.
- C1 fine bit for precision work.
- Ergonomic, lightweight anti-fatigue handle.
- CE, TÜV, GS, RoHS certified.
| Parameter | Details |
|---|---|
| Input Voltage | 110-240V |
| Output Power | 30W, 40W |
| Heating Element | Mica |
| Output Temperature | High |
| Temperature Stability | Good |
| Package | Blister |
ESD-Safe Product Positioning
The ZD-724C ESD-Safe Soldering Iron is presented for work on sensitive electronic components.
Key Features
- ESD Safe design
- Mica heater
- Factory-fitted C1 fine point bit
- Screw-fixed tip mechanism for tip replacement
- Compact, lightweight handle with a comfortable grip
- CE, TÜV Rheinland, GS and RoHS certified
Power, Heater and Tip Specifications
The ZD-724C is available in 30W and 40W versions with a mica heater and C1 fine point bit.
Specifications
| Code | Voltage | Power | Tip Model | Note |
|---|---|---|---|---|
| 88-7273 | 110–130V | 30W | C1 | Long Life |
| 88-7274 | 220–240V | 30W | C1 | |
| 88-7275 | 110–130V | 40W | C1 | |
| 88-7276 | 220–240V | 40W | C1 |
Intended Electronics Workloads
The ZD-724C is intended for general-purpose soldering, electronics repair and circuit-board work, including detailed work on sensitive components.
Request Technical and Supply Details
Different shapes and customized colors are available subject to client MOQ requirements.
Packaging Information
| Model | Package | Q’ty/ctn | Carton Size | N.W. | G.W. | Power |
|---|---|---|---|---|---|---|
| ZD-724C | Blister card | 100pcs | 57.5×36×30cm | 12.5kgs | 13.5kgs | 30W / 40W |
| Blister card | 100pcs | 57.5×36×30cm | 14.5kgs | 15.5kgs | 60W | |
| Blister card | 50pcs | 41×32×38.5cm | 10.5kgs | 11.5kgs | 30W / 40W | |
| Blister card | 50pcs | 41×32×38.5cm | 11.5kgs | 12.5kgs | 60W |
Please complete the enquiry form below to submit your requirements and request a quotation.
Request a Quote Now!
- Two-year warranty from receipt of the BL
- Missing parts: free replacement
- 24×7 technical service standing by
