Heavy Duty Electric Soldering Iron
ZD-716
Features
- Extreme power for industrial heavy-duty tasks.
- Axe-shaped chisel tip for rapid heat transfer.
- Heat-resistant wooden handle for comfort.
- Powerful options: 120W to 320W.
- Includes heavy-duty metal iron stand.
|
Parameter
|
Specification
|
|---|---|
|
Input Voltage
|
110-130V / 220-240V
|
|
Power Rating
|
120W / 180W / 250W / 320W
|
|
Heating Element
|
Mica
|
|
Handle Material
|
Wood
|
|
Drive Type
|
Electric
|
|
Heating Time
|
Fast
|
|
Tip Shape
|
Axe shape
|
|
Temperature
|
High
|
|
Operation
|
Easy and comfortable
|
|
Application
|
Soldering on big components, electronics repair
|
|
Packaging
|
Gift Box
|
Power and Thermal Workload
The ZD-716 Heavy Duty Electric Soldering Iron is designed for soldering large components and electronics repair.
Workload Fit

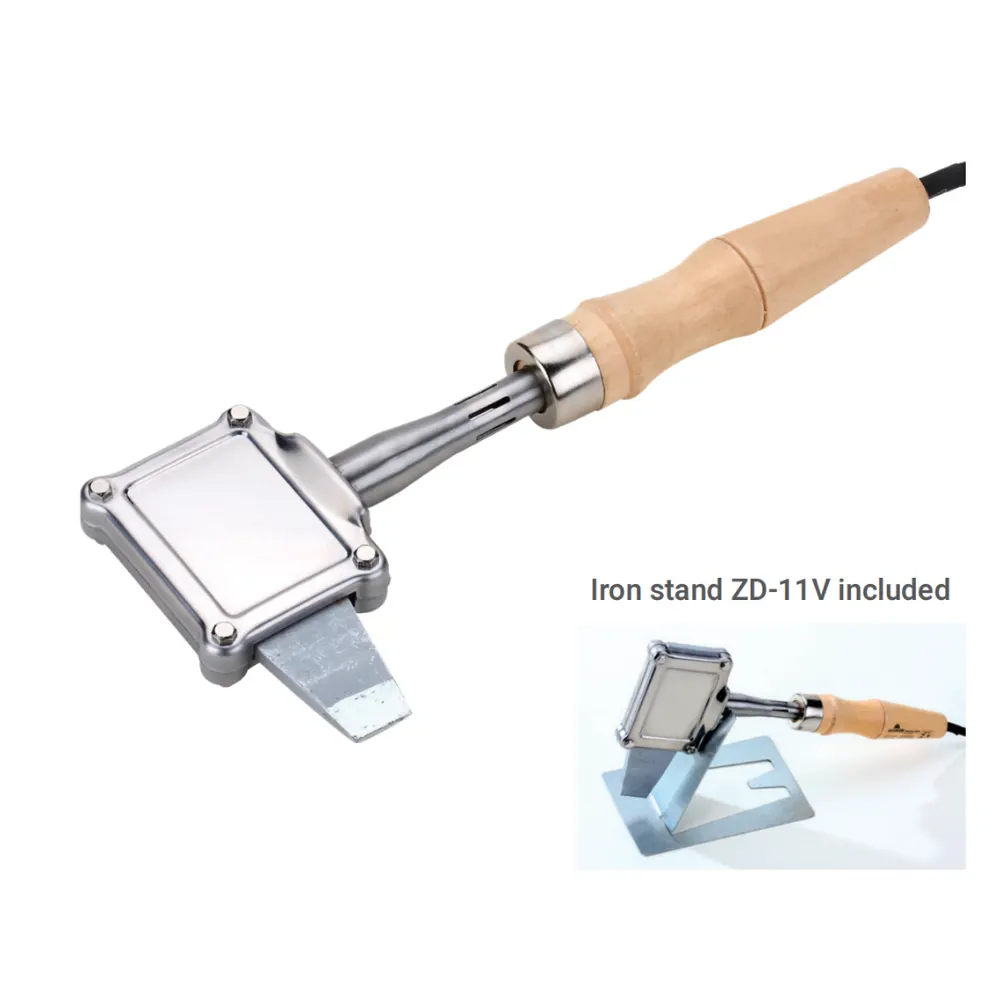

The ZD-716 is a handheld electric soldering iron supplied with a ZD-11V metal iron stand. Its soldering-iron configuration differs from a trigger-operated soldering gun or a soldering station with a separate control unit.
Tip, Voltage and Duty Specifications
Product Configuration
- Heating Element: Mica
- Tip Shape: Axe-shaped
- Handle Material: Wood
- Heating: Fast heat-up
- Included Stand: ZD-11V metal iron stand
- Compliance: RoHS
Electrical and Replacement-Part Specifications
| Code | Voltage | Power | Heater Code | Spare Tip |
|---|---|---|---|---|
| 88-7761 | 110–130V | 120W | 78-7751H | G5-1 Code: 79-4510 |
| 88-7762 | 220–240V | 120W | 78-7752H | |
| 88-7763 | 110–130V | 180W | 78-7753H | |
| 88-7764 | 220–240V | 180W | 78-7754H | |
| 88-7765 | 110–130V | 250W | 78-7755H | G6-1 Code: 79-4610 |
| 88-7766 | 220–240V | 250W | 78-7756H | |
| 88-7767 | 110–130V | 320W | 78-7757H | |
| 88-7768 | 220–240V | 320W | 78-7758H |
Packaging Details
| Model | Package | Q’ty/ctn | Carton Size | N.W. | G.W. | Power |
|---|---|---|---|---|---|---|
| ZD-716 | Gift box | 20 pcs | 39 × 38 × 47 cm | 16 kg | 17 kg | 120W / 180W |
| ZD-716 | Gift box | 20 pcs | 39 × 38 × 47 cm | 19 kg | 20 kg | 250W / 320W |
Request a Quote Now!
- Two-year warranty from receipt of the BL
- Missing parts: free replacement
- 24×7 technical service standing by
