High-Power Soldering Iron
- High Power Soldering Iron for heavy-duty tasks
- Chisel tip for efficient heating
- Power switch on ergonomic handle
- Seamless steel tube improves transfer
- Iron stand included for safe use
| Parameter | Details |
|---|---|
| Input Voltage | 220V-240V AC / 110V-240V |
| Power | 120W-320W (120W, 180W, 250W, 320W) |
| Control Temperature | 200°C-480°C |
| Heat-up Time | Custom |
| Handpiece Style | Pencil Grip |
| Heating Up | Quick |
| Heater | Ceramic |
| Operation | Easy & Comfortable |
| Color | Grey or Customized |
| Customized Support | OEM, ODM, OBM |
| Application | Home Use, Manufacturing Plants, Electronics Industry, Machinery Repair Shops |
| Package | Gift Box |
| Warranty | 1 Year |
Heating Power Options for Heavy-Duty Soldering
ZD-715 is a high-power soldering iron for heavy-duty soldering work, available in 120 W, 180 W, 250 W and 320 W versions. The seamless steel tube is designed to support heat transfer, while the Product Specifications list a 200°C–480°C control-temperature range.
The page does not define supported joint-size classes or recovery-time values, so these are not specified here.
Tip, Heater and Electrical Specifications

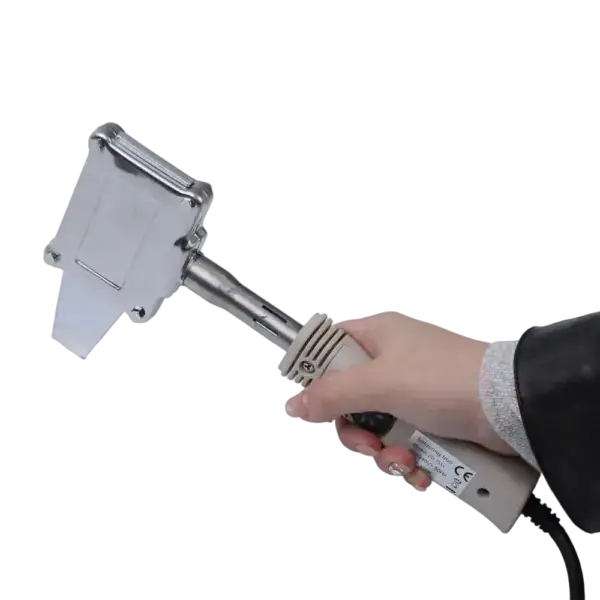

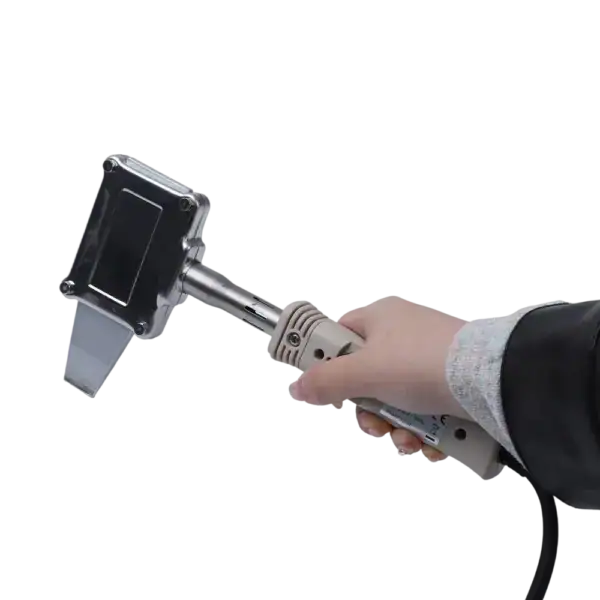

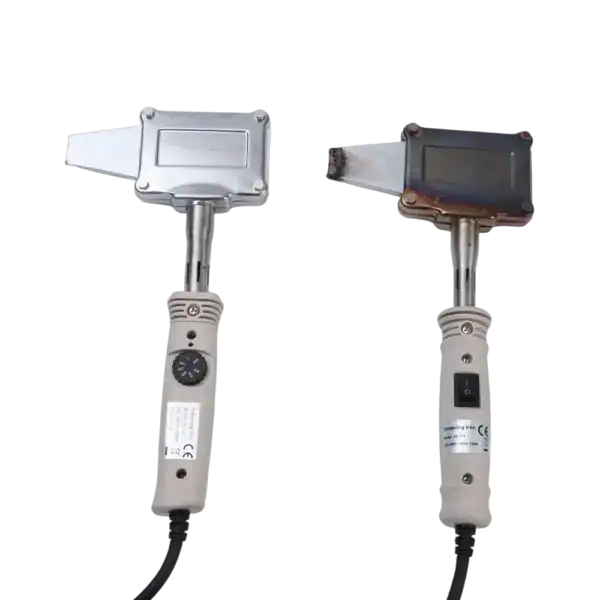

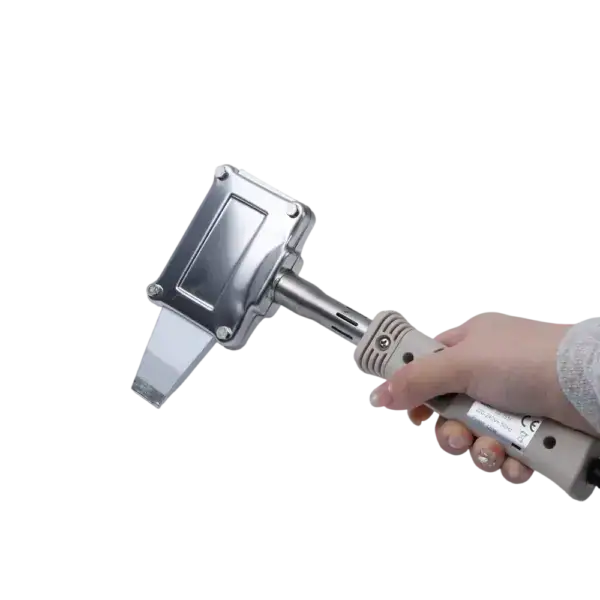

The iron uses a chisel-shaped tip and a ceramic heater. Its frosted plastic, ergonomic handle incorporates a power switch, and an iron stand is included.
Model Configuration
| Code | Voltage | Power | Heater Code | Spare Tip |
|---|---|---|---|---|
| 88-7751 | 110–130 V | 120 W | 78-7751H | G5-1, Code: 79-4510 |
| 88-7752 | 220–240 V | 78-7752H | ||
| 88-7753 | 110–130 V | 180 W | 78-7753H | |
| 88-7754 | 220–240 V | 78-7754H | ||
| 88-7755 | 110–130 V | 250 W | 78-7755H | G6-1, Code: 79-4610 |
| 88-7756 | 220–240 V | 78-7756H | ||
| 88-7757 | 110–130 V | 320 W | 78-7757H | |
| 88-7758 | 220–240 V | 78-7758H |
Spare Tips
| Code | Use for | Power | Model |
|---|---|---|---|
| 79-4510 | ZD-715 / ZD-751F | 120 W / 180 W | G5-1 |
| 79-4610 | 250 W / 320 W | G6-1 |
Spare Heaters
| Code | Use for | Power |
|---|---|---|
| 78-7751H to 78-7754H | ZD-715 / ZD-751F | 120 W / 180 W |
| 78-7755H to 78-7758H | 250 W / 320 W |
Applications, Packaging and Inquiry
ZD-715 is suited to heavy-duty soldering tasks. CE and RoHS marks are shown on the product page.
Packaging Information
| Model | Package | Q’ty/ctn | Carton Size | N.W. | G.W. | Power |
|---|---|---|---|---|---|---|
| ZD-715 | Gift box | 20 pcs | 39 × 38 × 47 cm | 16 kg | 18 kg | 120 W / 180 W |
| 19 kg | 20 kg | 250 W / 320 W |
Please complete the enquiry form below to submit your requirements and request a quotation.
- Two-year warranty from receipt of the BL
- Missing parts: free replacement
- 24×7 technical service standing by
