Hot Air Station for Soldering
ZD-939L
Features
- Compact hot‑air SMD rework station
- 160–480°C digital temp; independent air & heat control
- Interchangeable nozzles for QFP / SOP / PLCC / BGA
- 320W replaceable heater (probe)
- 110–130V / 220–240V, ESD options
- CE/TUV/GS/RoHS
The ZD-939L is a professional hot air station for soldering by ZHONGDI, featuring independent knob controls for air flow and temperature, adjustable heat range from 160°C to 480°C, and a max air volume of 24L/min. Suitable for soldering/desoldering QFP, SOP, PLCC, SOJ, and BGA(CSP) components.
Key Features:
- Ideal for SMD rework and repair with digital temperature readout.

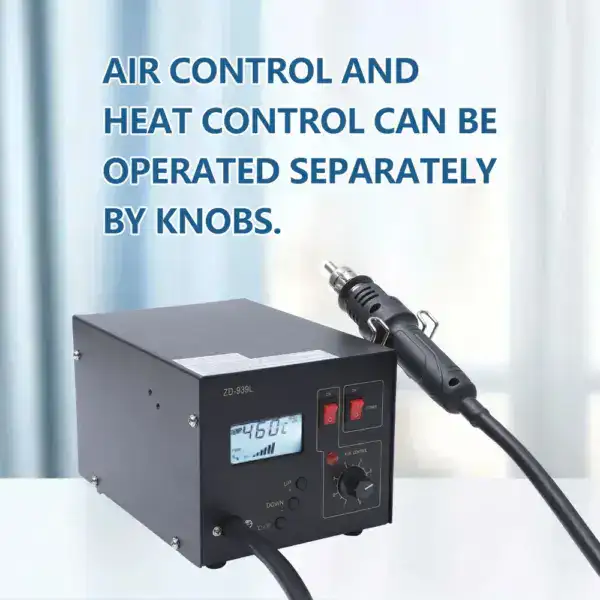

- Separate knobs for air flow and heat control for precise operation.

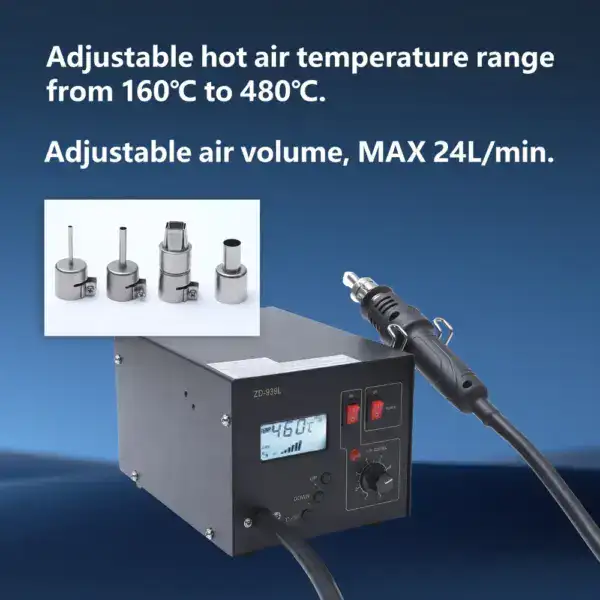

- Temperature range 160°C–480°C and adjustable air volume (max 24 L/min).
- Multiple nozzle types available for QFP, SOP/PLCC, SOJ, BGA etc.
- Replaceable spare heater (320W) with optional temperature probe.
Codes and Supply Options:
| Code | Voltage | Note |
|---|---|---|
| 89-3915 | 110-130V | — |
| 89-3916 | 220-240V | — |
| 89-3917 | 110-130V | ESD |
| 89-3918 | 220-240V | ESD |
Spare Heater:
| Code | Voltage | Power | Note |
|---|---|---|---|
| 79-939A | 110–130V | 320W | with temperature probe |
| 79-939B | 220–240V | 320W |
Included Accessories:
Spare parts 79-3901, 79-3907, 79-3902, 79-3903, 79-3940, 79-3941, 79-3942.
Nozzles for Selection:
| Category | Example nozzles (code — size where shown) |
|---|---|
| QFP | 79-3902 (9.4×9.4mm), 79-3903 (17.2×17.2mm), 79-3904 (20.4×20.4mm) |
| SOP | 79-3908 (4.1×9mm), 79-3909 (5.6×9mm), 79-3910 (7.9×13.2mm) |
| PLCC / SOJ | 79-3924 (23.2×23.2mm), 79-3925 (28.1×28.1mm), 79-3950 (7.1×18.3mm) |
| BGA | 79-3980 (10×10mm), 79-3981 (13×13mm), 79-3991 (41×41mm) |
| Specialty / small tips | 79-3960, 79-3961, 79-3907 (various small diameters) |
Product Packing & Weights:
| Model | Package | Q’ty/ctn | Carton size (cm) | N.W. | G.W. |
|---|---|---|---|---|---|
| ZD-939L | Gift box | 2 sets | 57 × 28.5 × 21.5 cm | 7 kgs | 8 kgs |
| Temperature Range | 160°C – 480°C |
| Temperature Display | Digital readout |
| Max Air Volume | 24 L/min |
| Heater Power | 320W |
| Input Voltage | 110–130V / 220–240V |
| Package | Gift box |
