Mini Temperature Controlled Soldering Station
ZD-927
Features
- Heats up quickly, small size
- Rubber grip for heat & fatigue protection
- Knob for 100°C–450°C control
- 12V iron with replaceable tips
- LED indicator & stable transformer
|
Input Voltage
|
110V – 240V
|
|
Output Voltage
|
12V AC (MAX)
|
|
Power
|
8W
|
|
Maximum Temperature
|
450°C
|
|
Color
|
Black
|
|
Weight
|
0.65 kg
|
|
Heat Up
|
Quick
|
|
Tip
|
Replaceable
|
|
Operation
|
Easy & Comfortable
|
|
Usage
|
Soldering
|
|
Power Source
|
Plug Powered
|
|
Certification
|
CE, EMC, GS, RoHS
|
|
Package
|
Gift Box
|
|
Warranty
|
2 Years
|
220V Input and Electrical Configuration
The ZD-927 220V Iron Soldering Station is available in a 220–240V, 8W version for 220V markets. The station uses a small transformer and provides a maximum 12V AC output to the soldering iron.
A 110–130V version is also available for the relevant market.
Key Features
- Compact station with quick heat-up
- Small transformer for stable voltage control
- Rubber-grip handle for comfortable operation

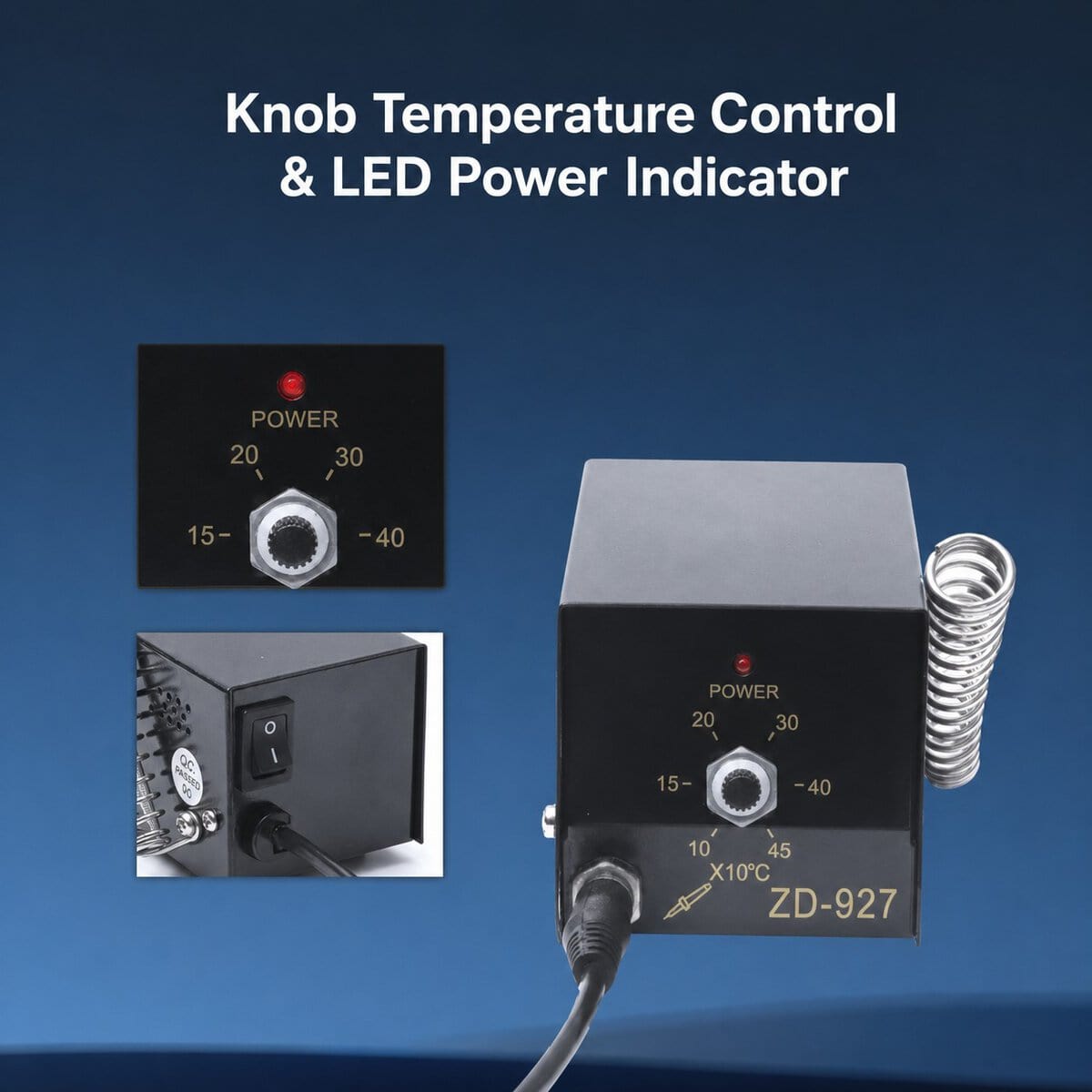

- Knob-controlled temperature adjustment
- LED power indicator
| Code | Voltage | Power |
|---|---|---|
| 89-2711 | 110–130V | 8W |
| 89-2712 | 220–240V | 8W |
Temperature Control, Handpiece and Tip System
The ZD-927 provides adjustable 100°C–450°C temperature control. It uses the 88-208A replacement soldering iron, rated at 12V and 8W, with replaceable tips.
Spare Soldering Iron
| Code | Voltage | Power | Use for |
|---|---|---|---|
| 88-208A | 12V | 8W | ZD-927 / ZD-928 |
Spare Tip
| Code | Model | Use for |
|---|---|---|
| 79-8315 | TIP D3-2 | 88-208A |
Continuous Soldering Use and Packaging
The ZD-927 is a compact soldering station for continuous soldering work where adjustable temperature control is required.
Packaging Details
| Model | Package | Q’ty/ctn | Carton Size | N.W. | G.W. |
|---|---|---|---|---|---|
| ZD-927 | Gift box | 20 sets | 36 × 20 × 33.5 cm | 13 kgs | 14 kgs |
