PCB Board Holder
ZD-11ES
Features
- PCB Board Holder with adjustable clamping.
- Max PCB size: 80x160mm, thickness 0.8-2.5mm.
- Two uses: flat or flip soldering.
- Holds plug-in components firmly.
- Patented Zhongdi design.
- RoHS compliant.

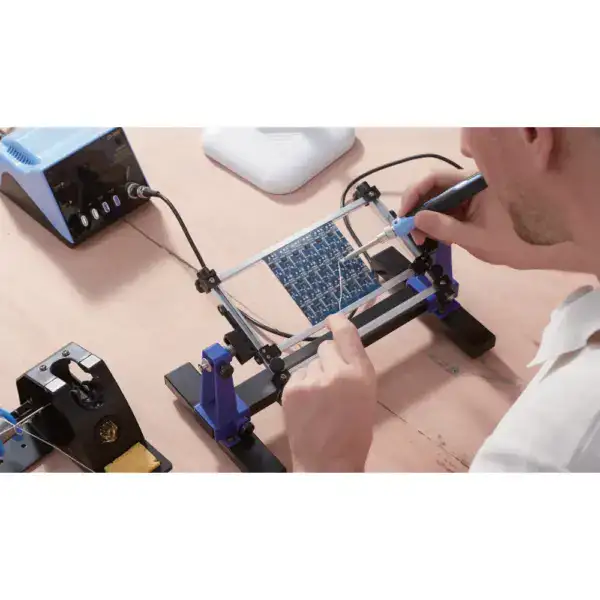

The ZD-11ES is a highly versatile and patented PCB Board Holder designed to securely fix and assist in the precise soldering of plug-in electronic components.
Product Features:
- Adjustable Clamping: Features a movable crossbar that easily accommodates various sizes of PCBs, with a maximum clamping size of 80x160mm and a thickness range of 0.8-2.5mm.
- Versatile “2 Uses” Design: The movable component can be removed and placed independently flat on a desktop, or it can be installed onto a dedicated rotating holder for convenient flip soldering.
- Secure Component Holding: Acts as an excellent auxiliary tool for plug-in soldering; once components are inserted, they are firmly held by the auxiliary board for stable work.
- Patented Innovation: Features a patented Zhongdi design, ensuring a unique, high-quality structure built for professional electronics repair and assembly.
- Safety & Compliance: Fully RoHS compliant, meeting strict environmental and safety standards for peace of mind during operation.
Packaging Details:
| Model | Package | Q’ty/ctn | Carton Size | N.W. | G.W. |
|---|---|---|---|---|---|
| ZD-11ES | Gift box | 40pcs | 53x32x32.5cm | 7.5kgs | 8.5kgs |
| Parameter | Details |
|---|---|
| Max PCB Size | 80 x 160 mm |
| PCB Thickness Range | 0.8 – 2.5 mm |
| Safety & Compliance | RoHS compliant |
| Package Type | Gift box |
| Quantity per Carton | 40 pcs |
Request a Quote Now!
- Two-year warranty from receipt of the BL
- Missing parts: free replacement
- 24×7 technical service standing by
