PCB Holder Clamp
ZD-11F
Features
- Holds PCBs 20–250mm securely
- Microscope-grade precision for delicate tasks
- Self-leveling rubber feet keep base horizontal
- Dual height adjustment (rough 0–230mm, precise 0–60mm)
- RoHS conform for environmental compliance

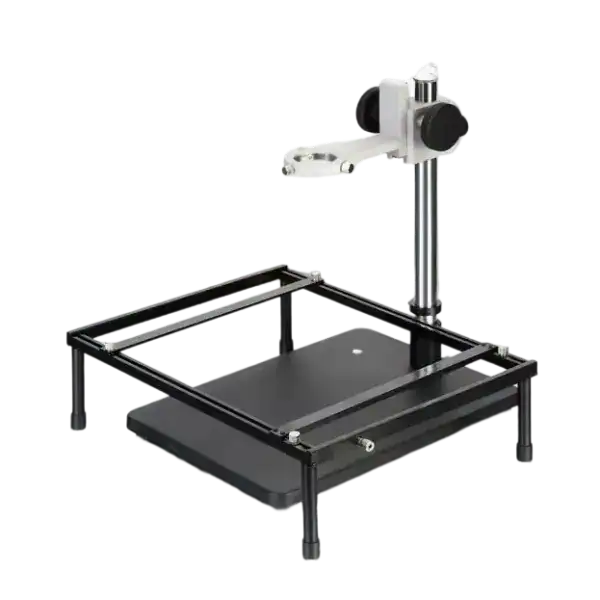

The ZD-11F is a highly versatile and precise PCB Holder Clamp and repair platform, expertly designed for holding circuit boards securely during complex desoldering and rework tasks.
Key Product Features:
- Multi-Purpose Versatility: An excellent all-around solution that is perfectly suited for holding large-size PCBs, general desoldering work, and is specifically ideal for desoldering BGA ICs.
- Microscope-Grade Precision: The adjusting components are manufactured from the same high-quality materials used in microscopes, guaranteeing perfect stability, durability, and ultimate precision during delicate tasks.
- Convenient Arm Adjustability: The arms of the repair station are designed to move up or down smoothly and easily, ensuring effortless operation and exact positioning over your work area.
- Self-Leveling Base: Equipped with specialized rubber feet that can move in all directions, ensuring the main operation platform always remains perfectly horizontal on your workbench.
- Wide PCB Capacity: Highly adaptable to different board sizes, accommodating a maximum holding size of 250mm and a minimum holding size of 20mm (applicable to either length or width).
- Dual Height Adjustment: Features a two-tier adjustment system with a rough adjusting height range of 0~230mm and a precise adjusting height range of 0~60mm for pinpoint accuracy.

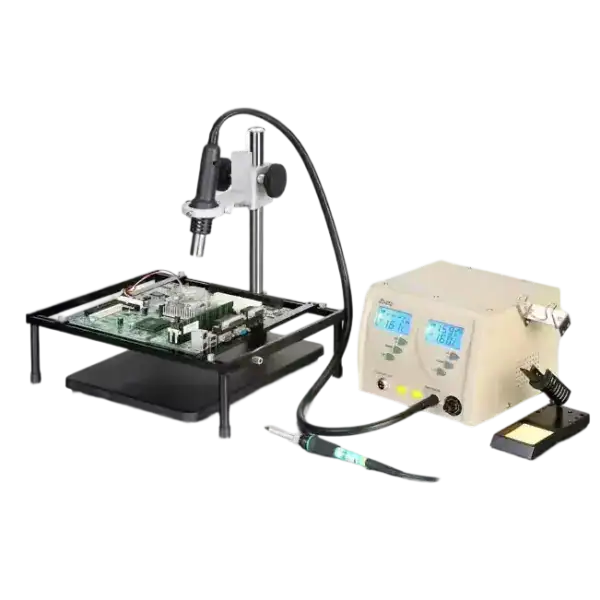

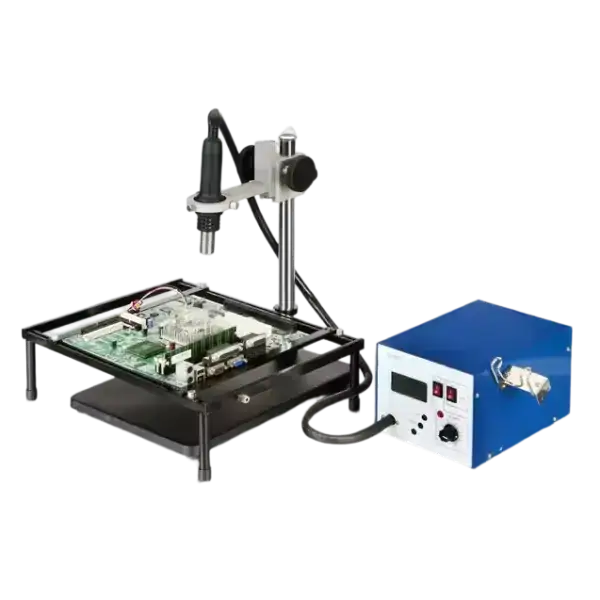

- System Integration: Thoughtfully designed to work seamlessly in tandem with our 2-in-1 soldering and repair stations, creating a complete and highly efficient rework environment.
- Certified Standard: The platform is fully RoHS conform, ensuring compliance with international environmental and safety standards.
Packaging Details:
| Model | Package | Q’ty/ctn | Carton Size | N.W. | G.W. |
|---|---|---|---|---|---|
| ZD-11F | Gift box | 2pcs | 57×38.5x25cm | 8.5kgs | 9.5kgs |
| Parameter | Details |
|---|---|
| PCB Holding Capacity (Min) | 20 mm (length or width) |
| PCB Holding Capacity (Max) | 250 mm (length or width) |
| Rough Height Adjustment Range | 0–230 mm |
| Precise Height Adjustment Range | 0–60 mm |
| Certification | RoHS conform |
| Package Type | Gift box |
