Solder Fume Extractor
ZD-153
Features
- Adjustable angle for precise placement
- Low-noise fan, high performance
- Replaceable carbon filter (PU foam)
- Reduces headaches & eye irritation
- Regular & ESD versions available

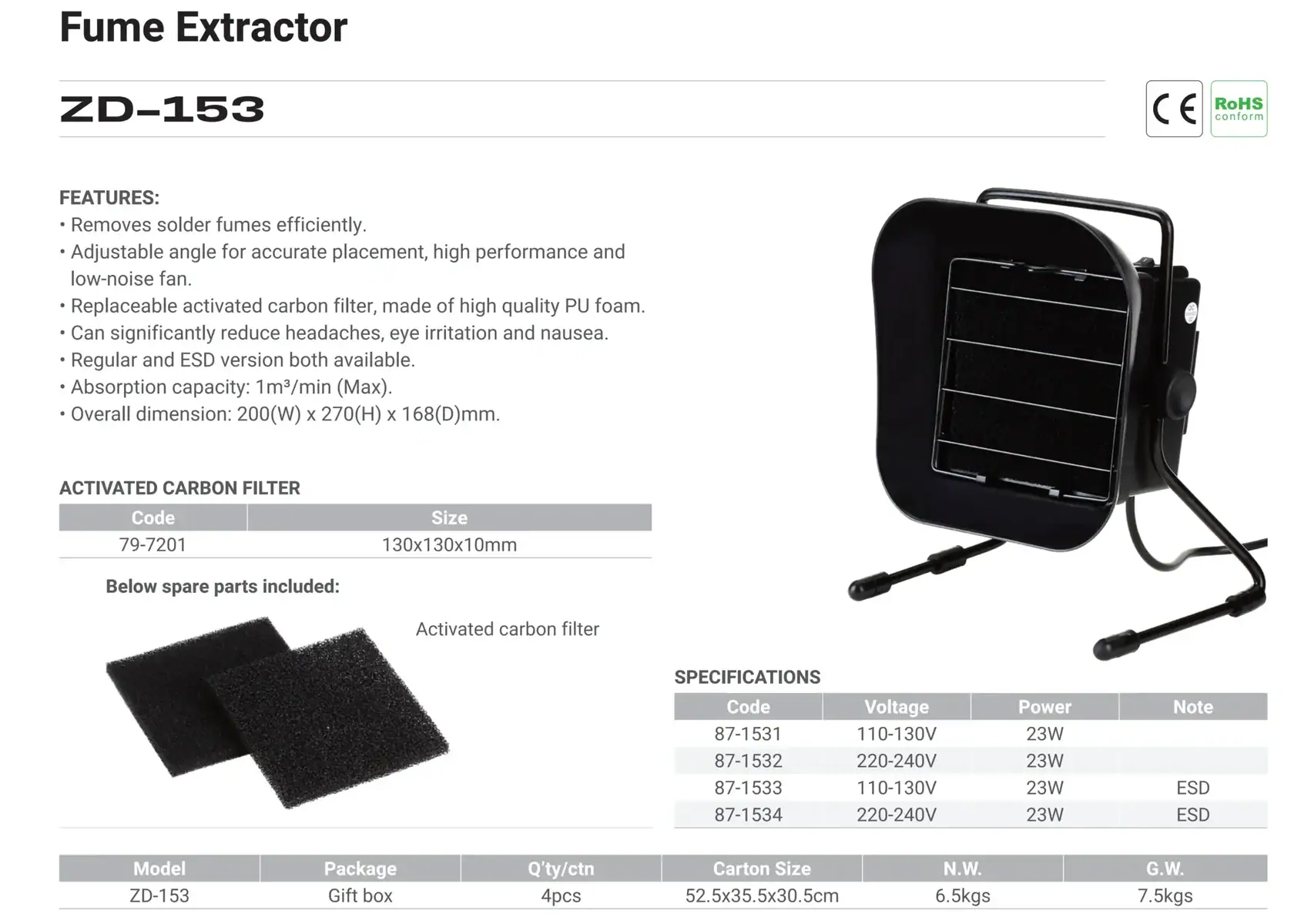

The ZD-153 Solder Fume Extractor features an adjustable angle, low-noise fan, and replaceable activated carbon filter to efficiently remove harmful solder fumes and reduce health discomfort.
Key Features:
- Efficiently removes solder fumes for a cleaner work environment.
- Adjustable angle for precise placement, featuring high performance and low-noise fan.
- Equipped with a replaceable activated carbon filter made of high-quality PU foam.
- Helps significantly reduce headaches, eye irritation, and nausea.
- Available in both regular and ESD-safe versions.
- Maximum absorption capacity: 1 m³/min.
- Overall dimensions: 200(W) × 270(H) × 168(D) mm.
|
Product Parameters
|
|
|
Application
|
Laboratory
|
|
Filter Type
|
Activated Carbon Filter
|
|
Use
|
Soldering; filters smoke, dust and odor
|
|
Input Voltage
|
110-240V
|
|
Output Power
|
23W
|
|
Maximum Air Flow
|
1m³/min (Max)
|
|
Mobility
|
Mobile
|
|
Operation
|
Easy & Comfortable
|
|
Color
|
Black
|
|
Dimensions
|
200(W) × 270(H) × 168(D) mm
|
|
Weight
|
1.6 kg
|
|
Service Information
|
|
|
Package
|
Gift Box
|
|
Warranty
|
1-2 Years
|
