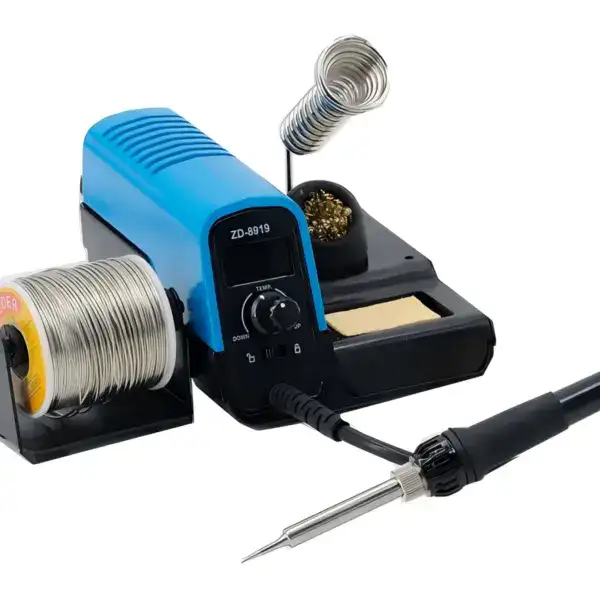

Soldering Iron Station Factory

ZD-8919
CE mark certification symbol for product compliance and safety standards.TÜV Rheinland certification logo for quality assurance and safety standards.Certified safety logo with GS mark for tested security and quality assurance.RoHS conform logo indicating compliance with European Restriction of Hazardous Substances directive.
Features

  • Factory-grade temperature control.
  • 30W power, fast heat-up.
  • Adjustable knob, easy use.
  • Includes stand, sponge, cleaning ball.
  • Compatible tips and spare irons available.

The ZD-8919 Soldering Iron Station Factory offers professional temperature-controlled solutions for factories, laboratories, and repair technicians. It ensures precise heat control with a PTC rapid heating element and adjustable temperature settings for versatile soldering needs.

Model Code Voltage Power
ZD-8919 89-1921 110–130V 30W
ZD-8919 89-1922 220–240V 30W

Spare Tips for Soldering Iron

Code Model Note
79-1917 TIP N9-16 High quality
79-1927 TIP N9-26 High quality
79-1937 TIP N9-36 High quality
79-1947 TIP N9-46 High quality
79-1957 TIP N9-56 High quality

Spare Soldering Iron

Model Code Voltage Power Note
ZD-421 88-4211 110–130V 30W (130W heat-up) For ZD-8919
ZD-421 88-4212 220–240V 30W (130W heat-up) For ZD-421

Spare Heater

Code Voltage Power Use for
78-4211 110–130V 30W ZD-421
78-4212 220–240V 30W ZD-421

Sponge

Code Size
79-7309 25×40mm

Package

Model Package Qty/ctn Carton size (cm) N.W. G.W.
ZD-8919 Gift box 10 sets 26.5×24.5×45 8 kg 9 kg
— Product Specifications —
Input Voltage
110-130V 60Hz / 220-240V 50Hz
Power
30W (max 130W)
Temperature Range
160–480°C
Heating Element
Ceramic
Display
LED
Tip Type
Chisel
Warm-up Speed
Quick
Operation
Easy & Comfortable
Application
Electronics Repair, Factory, Home Use, Machinery Repair Shops, Soldering
— Physical Features —
Tip Material
Copper
Tip
Replaceable
Weight
0.8 kg
Color
Red, Blue, White
— Packaging & Service —
Package
Gift Box
Warranty
1 Year
Customized Support
ODM, OEM
Request a Quote Now!
  • Two-year warranty from receipt of the BL
  • Missing parts: free replacement
  • 24×7  technical service standing by
