Soldering Smoke Absorber
ZD-601A
Features
- Multi-layer filtration for rapid purification
- Adjustable fan speed (10–100) with LED
- Flexible hose – length & angle adjustable
- Low voltage (15W) – safe & reliable
- Filters smoke, dust, and odor
|
Application
|
Industrial, Laboratory
|
|
Voltage
|
100-240V
|
|
Power
|
15 W
|
|
Mobility
|
Mobile
|
|
Operation
|
Easy & Comfortable
|
|
Color
|
Black
|
|
Package
|
Gift box
|
|
Warranty
|
2 Years
|
Desktop Placement for Soldering Work

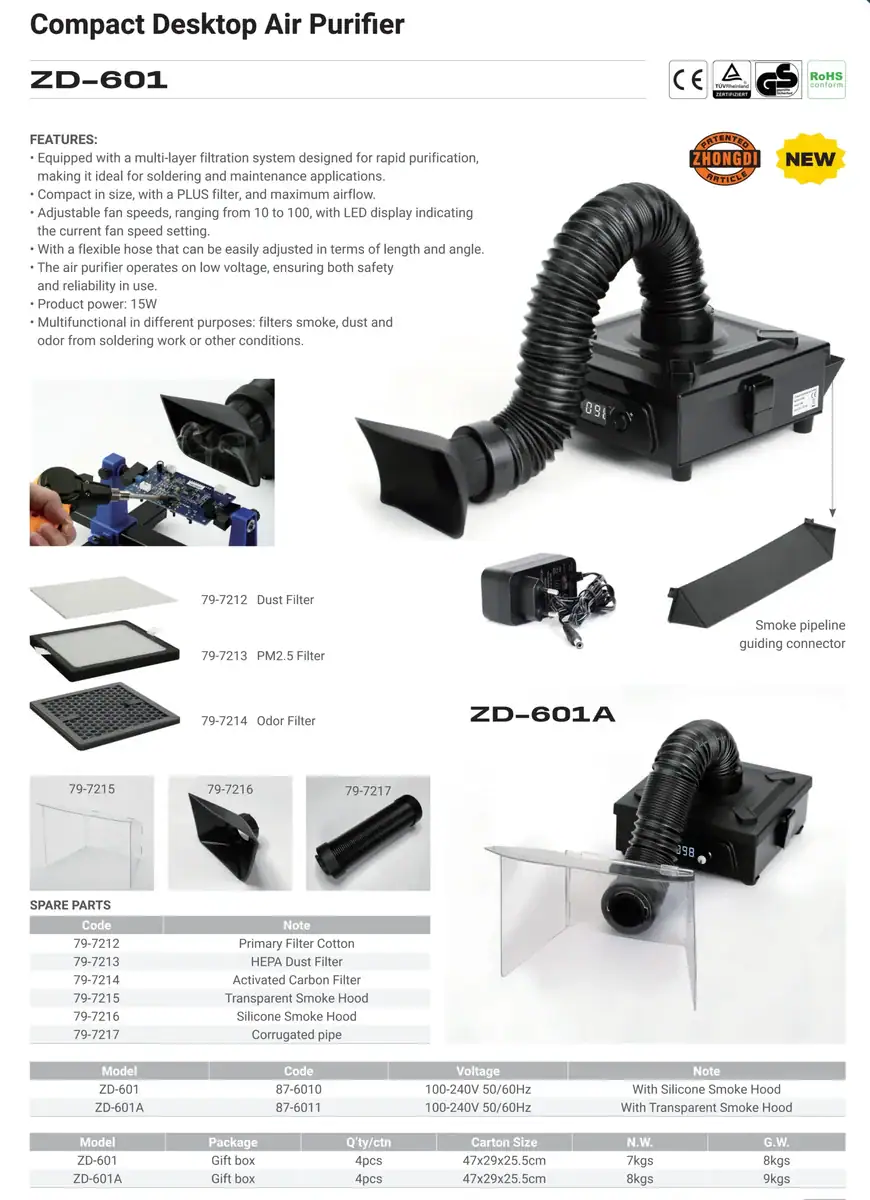

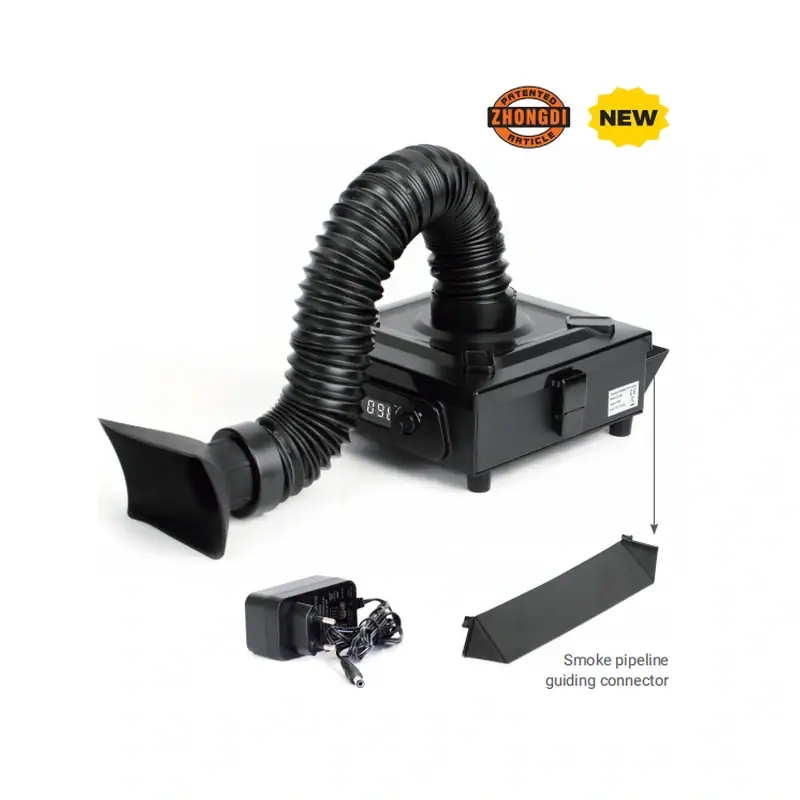

The ZD-601A is a compact desktop air purifier for soldering and maintenance applications. Its flexible hose is easily adjustable in length and angle for positioning around the work area.
The system is designed to filter smoke, dust and odour from soldering work and other working conditions. The compact unit is specified with a PLUS filter and maximum airflow.
Fan and Filter Specifications
The compact desktop air purifier uses a multi-layer filtration system designed for rapid purification. Fan speed is adjustable from 10 to 100, with an LED display indicating the current fan-speed setting. Product power is 15W.
| Item | Specification |
|---|---|
| Filtration system | Multi-layer filtration |
| Fan-speed adjustment | 10–100 |
| Fan-speed display | LED display |
| Flexible hose | Length and angle adjustable |
| Product power | 15W |
| Filtered contaminants | Smoke, dust and odour |
Filters, Spare Parts and Trade Inquiry
Filters
| Code | Product label | Spare-part description |
|---|---|---|
| 79-7212 | Dust Filter | Primary Filter Cotton |
| 79-7213 | PM2.5 Filter | HEPA Dust Filter |
| 79-7214 | Odor Filter | Activated Carbon Filter |

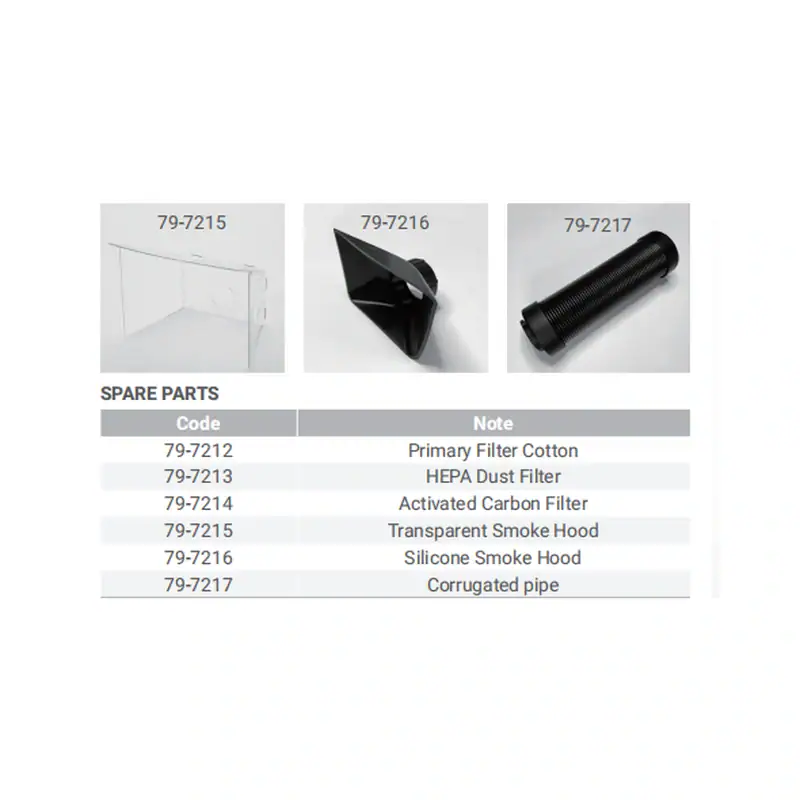

Spare parts
| Code | Spare part |
|---|---|
| 79-7215 | Transparent Smoke Hood |
| 79-7216 | Silicone Smoke Hood |
| 79-7217 | Corrugated pipe |
Model configurations
| Model | Code | Voltage | Note |
|---|---|---|---|
| ZD-601 | 87-6010 | 100–240V, 50/60Hz | With Silicone Smoke Hood |
| ZD-601A | 87-6011 | 100–240V, 50/60Hz | With Transparent Smoke Hood |
Packaging
| Model | Package | Q’ty/ctn | Carton Size | N.W. | G.W. |
|---|---|---|---|---|---|
| ZD-601 | Gift box | 4 pcs | 47 × 29 × 25.5 cm | 7 kgs | 8 kgs |
| ZD-601A | Gift box | 4 pcs | 47 × 29 × 25.5 cm | 8 kgs | 9 kgs |
Please complete the enquiry form below to submit your requirements and request a quotation.
