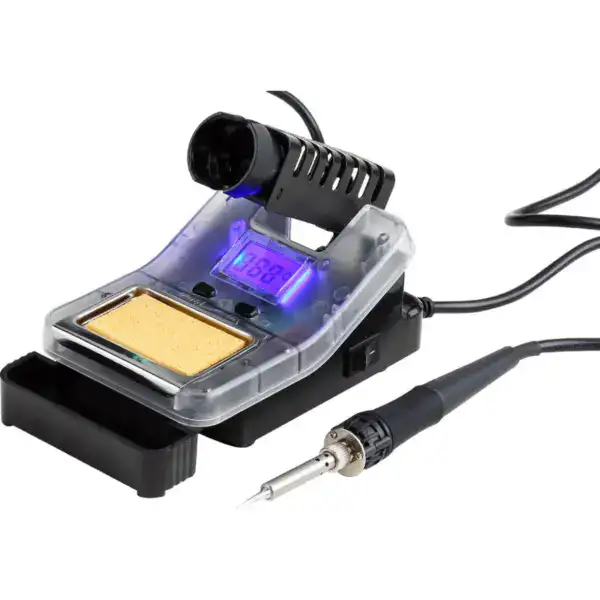

Digital Soldering Station
ZD-8906N
Features
- Digital Soldering Station with precise control
- +/- buttons & LCD display for setting
- Ceramic heater – better than traditional
- Includes rubber grip iron, sponge, tip drawer
- Silicone cable – soft, heatproof, durable
|
— Product Specifications —
|
|
|
Input Voltage
|
110–130V / 220–240V
|
|
Output Power
|
25W / 30W
|
|
Output Temperature
|
160°C–480°C / 160°C–520°C
|
|
Display
|
LCD
|
|
Heater
|
Ceramic
|
|
Heat-Up Speed
|
Quick
|
|
Soldering Tip
|
Replaceable
|
|
Operation
|
Easy & Comfortable
|
|
Color
|
Gray / Red
|
|
Dimensions
|
155 × 100 × 127 mm
|
|
Weight
|
0.7 kg
|
|
Certifications
|
CE, GS, RoHS
|
|
— Packaging & Service —
|
|
|
Package
|
Color Box
|
|
Warranty
|
1 Year
|

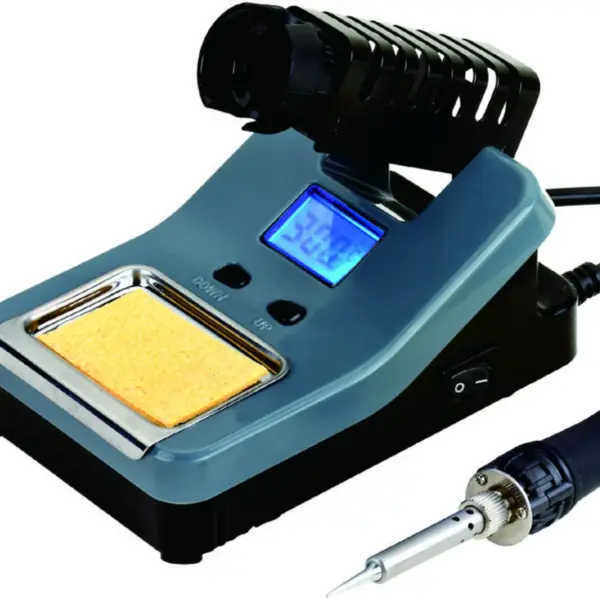

Temperature Display and Control Interface
The ZD-8906N digital soldering station uses an LCD display and + / − push buttons for temperature setting. The interface supports direct adjustment through the front-panel controls.
Heating Performance and Replaceable Tip
The station uses a ceramic heater with quick heat-up performance. Its product specifications list an output temperature of 160°C–480°C / 160°C–520°C. The soldering tip is replaceable.
The supplied tool system includes:
- Soldering iron with rubber grip
- Sponge
- Drawer for spare tips
- Silicone soldering-iron cable, specified as soft, heatproof and durable
| Product specification | Detail |
|---|---|
| Display | LCD |
| Heater | Ceramic |
| Heat-up speed | Quick |
| Output temperature | 160°C–480°C / 160°C–520°C |
| Soldering tip | Replaceable |
| Operation | Easy & Comfortable |
| Colour | Gray / Red |
| Dimensions | 155 × 100 × 127 mm |
| Weight | 0.7 kg |
Model Configuration and Trade Inquiry
| Model | Code | Voltage | Power |
|---|---|---|---|
| ZD-8906N | 89-040A | 110–130V | 25W |
| 89-040B | 220–240V | ||
| 89-0407 | 110–130V | 30W | |
| 89-0408 | 220–240V |
Optional PVC or silicone cable versions are available for the soldering iron.
| Procurement detail | Specification |
|---|---|
| Certifications | CE, GS, RoHS |
| Package | Color Box |
