Soldering Station Machine
ZD-99
Features
- Temperature controlled soldering station machine.
- 48W / 58W mica heater options.
- Soft silicone cable & foam grip.
- Replaceable tips and heating element.
- Gift box packing, 10 sets per carton.

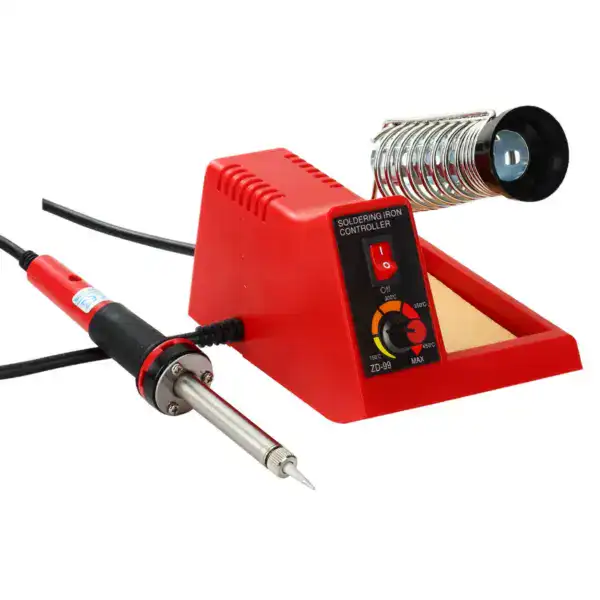

The ZD-99 Temperature Controlled Soldering Station Machine is a versatile, high-performance soldering solution designed for precise temperature control and comfortable operation.
FEATURES:
- On/off switch with a power indicator.
- High-end silicone soldering iron cable which is softer, heatproof and feels much better during use.
- Cushioned foam grip with replaceable heating element.
- Includes a high quality soldering iron tip, iron holder, and a sponge for cleaning the tip.
- Heater: mica, 150°C – 480°C (48W), 150°C – 520°C (58W)
- Temperature control by knob
SPECIFICATIONS
| Code | Voltage | Power | Heater Code |
|---|---|---|---|
| 89-9231 | 110-130V | 48W | 78-203A |
| 89-9232 | 220-240V | 48W | 78-203B |
| 89-9233 | 110-130V | 58W | 78-203C |
| 89-9234 | 220-240V | 58W | 78-203D |
Optional PVC or silicone cable for soldering iron
SPARE TIPS
| Code | Model | Power | Note |
|---|---|---|---|
| 79-3111 | TIP C1-1 | 48W | High quality |
| 79-3121 | TIP C1-2 | 48W | |
| 79-3131 | TIP C1-3 | 48W | |
| 79-3141 | TIP C1-4 | 48W | |
| 79-3211 | TIP C2-1 | 58W | |
| 79-3221 | TIP C2-2 | 58W | |
| 79-3231 | TIP C2-3 | 58W | |
| 79-3241 | TIP C2-4 | 58W |
SPARE SOLDERING IRON
| Code | Voltage | Power | Use for |
|---|---|---|---|
| 88-203A | 110-130V | 48W | 89-9231 |
| 88-203B | 220-240V | 48W | 89-9232 |
| 88-203C | 110-130V | 58W | 89-9233 |
| 88-203D | 220-240V | 58W | 89-9234 |
SPONGE
| Code | Size |
|---|---|
| 79-7303 | 90x50mm |
PACKING TABLE
| Model | Package | Q’ty/cm | Carton Size | N.W. | G.W. |
|---|---|---|---|---|---|
| ZD-99 | Gift box | 10 sets | 50.5×25.5×34.5cm | 7.5kgs | 8.5kgs |
|
Input Voltage
|
110-130Vac 60Hz / 220-240Vac 50Hz
|
|
Output Power
|
48W / 58W
|
|
Temperature Range
|
150-480°C / 150-520°C
|
|
Temperature Control
|
Precise
|
|
Tip Type
|
Conical
|
|
Tip Material
|
Copper
|
|
Body Material
|
Plastic & Metal
|
|
Color
|
Red / Blue & Red
|
|
Dimensions
|
115 × 143 × 90 mm
|
|
Weight
|
0.75 kg
|
|
Heating Speed
|
Quick
|
|
Operation
|
Easy & Comfortable
|
|
Application
|
Home Use, Soldering, Machinery Repair Shops
|
|
Warranty
|
1 Year
|
|
Package
|
Gift Box
|
|
Customized Support
|
ODM, OEM
|
