T12 Soldering Station
- T12 Soldering Station with 70W fast heating
- Heats up in 8 seconds, quick recovery
- Dual-line LED displays set & actual temp
- ESD-safe versions available, °C/°F switchable
- Compatible with T12 series interchangeable tips
|
Voltage
|
110-130V / 220-240V
|
|
Power
|
70W
|
|
Max Temperature
|
480 °C
|
|
Heat Up Time
|
Within 8 seconds
|
|
Auto Sleep Mode
|
Activates after 5 minutes of inactivity
|
|
Application
|
Soldering, Electronics & Machinery Repair, Home Use
|
|
Color
|
Black, Blue, Red
|
|
Tip Feature
|
Replaceable
|
|
Tip Type
|
Conical / Chisel
|
|
Package
|
Gift Box
|
|
Warranty
|
2 Years
|
|
Customized Support
|
OEM, ODM, OBM
|
Controller and Heating Platform
The ZD-8962 T12 Soldering Station is a 70W temperature-controlled soldering station available in standard and ESD configurations.
Controller Features
- Power: 70W
- Maximum Temperature: 480°C
- Heat-Up Time: Within 8 seconds
- Temperature Display: Two-line LED display showing the set and actual temperatures
- Controls: “+” and “−” adjustment buttons with a preset button
- Temperature Unit: Switchable between °C and °F

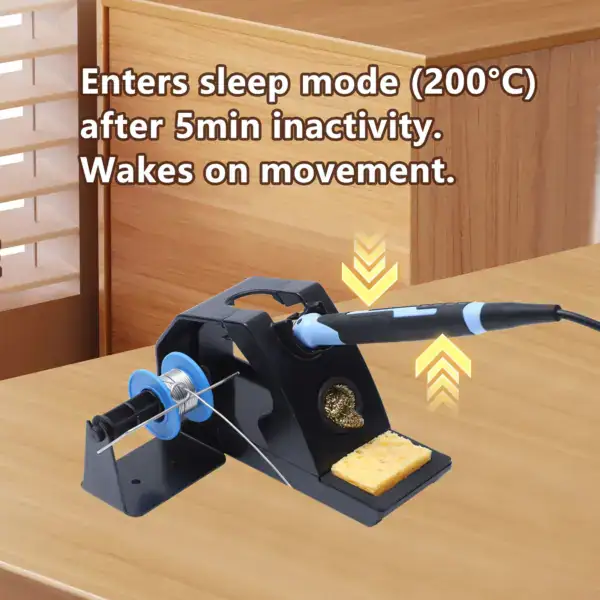

- Auto Sleep: Activates after 5 minutes of inactivity

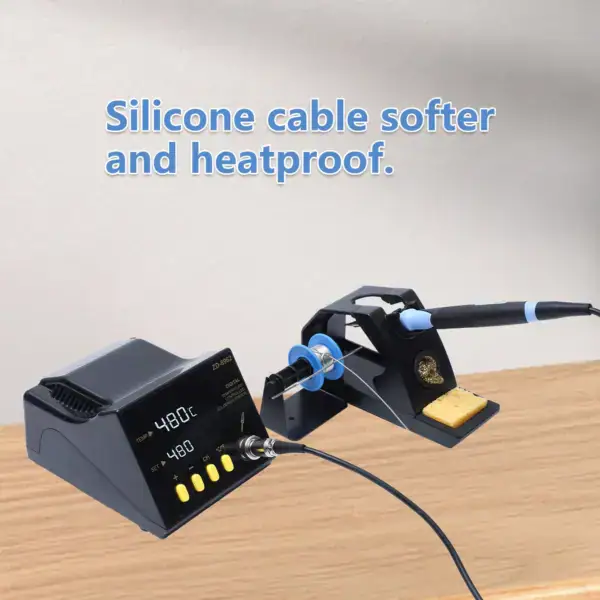

- Cable: Soft, heat-resistant silicone cable
- Color: Black, Blue, Red
- Certifications: CE, TÜV Rheinland, GS and RoHS
Electrical Options
| Code | Voltage | Configuration |
|---|---|---|
| 89-6201 | 110–130V | Standard |
| 89-6202 | 220–240V | Standard |
| 89-6203 | 110–130V | ESD |
| 89-6204 | 220–240V | ESD |
T12 Cartridge Compatibility

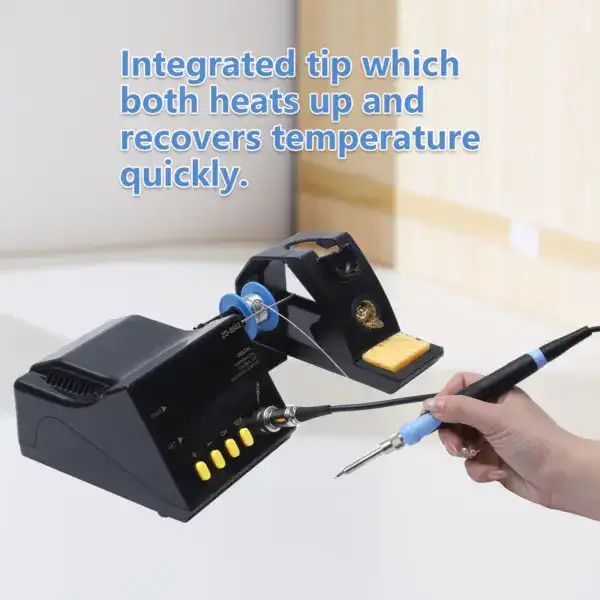

The ZD-8962 uses a plug-and-play, 2-in-1 heater-and-tip system. The following N12-series replacement units are available for its T12-compatible tip system:
| Code | Model | Tip Shape |
|---|---|---|
| 79-6201 | N12-1 | Pointy |
| 79-6202 | N12-2 | Extra Pointy |
| 79-6203 | N12-3 | Horseshoe |
| 79-6204 | N12-4 | Flat |
| 79-6205 | N12-5 | Blade |
| 79-6206 | N12-6 | Pointy with Curve |
Spare Soldering Iron
| Model | Code | Voltage | Power | Connection and Function |
|---|---|---|---|---|
| ZD-422 | 88-4221 | 20V | 70W | 5-pin connection with sleep function |
Workload and Recovery Requirements
The 70W heating platform, heat-up time of within 8 seconds and quick temperature recovery support the following applications:
- Soldering
- Electronics repair
- Machinery repair
- Home use
The two-line LED display allows the operator to monitor the set and actual temperatures simultaneously. Standard and ESD configurations are available for different workstation requirements.
Model and Supply Enquiry
Available Accessories
| Item | Code | Size/Note |
|---|---|---|
| Sponge | 79-7309 | 25 × 40 mm |
| Clean Ball | 87-0134 | — |
| Tip Set (ZD-N12H) | 87-6200 | Multi-tip set in case |
Packaging
| Model | Package | Q’ty/ctn | Carton Size | N.W. | G.W. |
|---|---|---|---|---|---|
| ZD-8962 | Gift box | 4 sets | 38 × 23.5 × 23 cm | 8 kg | 9 kg |
Order Requirements
Please provide the required voltage, standard or ESD configuration, quantity, destination market, tip models, spare soldering iron requirement, accessory requirement, and packaging requirement when submitting an enquiry.
- Two-year warranty from receipt of the BL
- Missing parts: free replacement
- 24×7 technical service standing by
