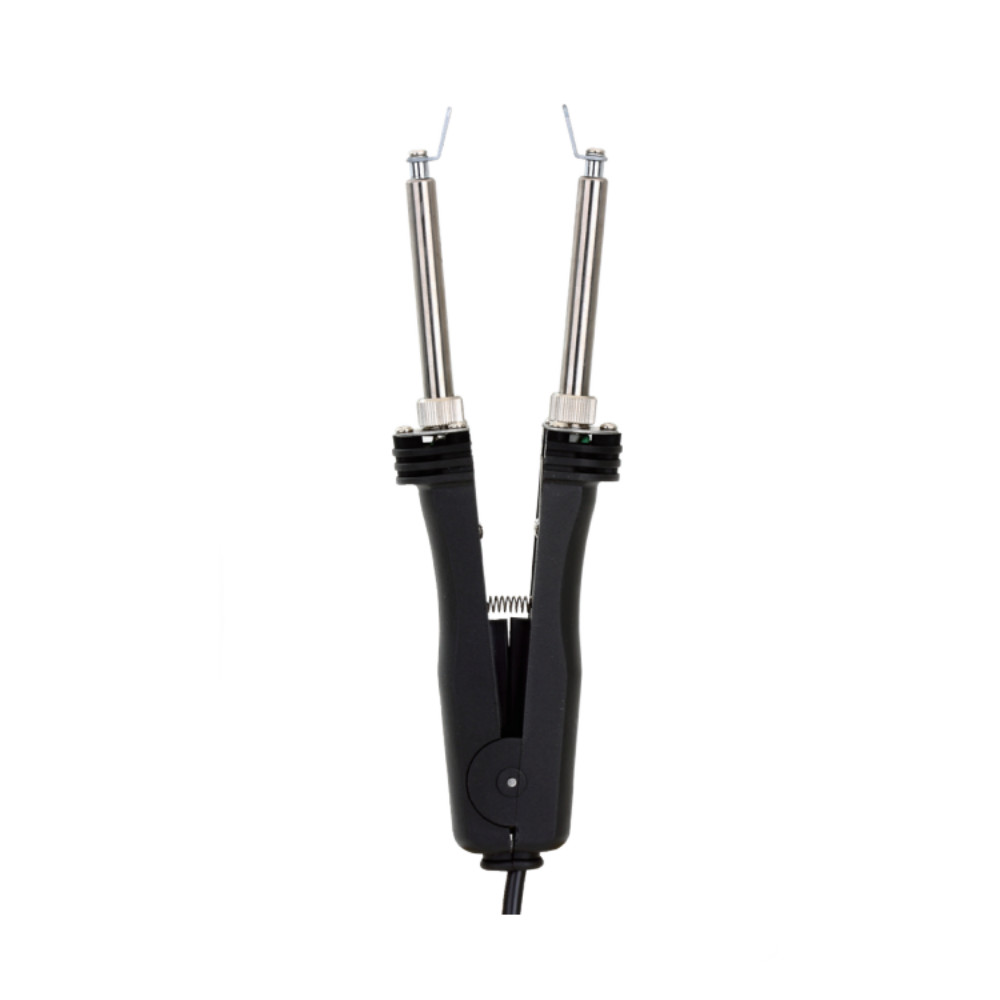

Tweezer Soldering Iron for SMD Rework
ZD-409
Features
- Precision tweezers with rapid ceramic heating.
- Heats components directly, protects nearby parts.
- Fast heat-up and thermal recovery.
- Ideal for desoldering and SMD rework.
- Compatible with 24V soldering stations.
| Parameter | Details |
|---|---|
| Input Voltage | 110-240V |
| Output Power | 48W |
| Heating Element | Ceramic |
| Color | Black |
| Heating Up Speed | Quick |
| Tip | Replacement High Quality |
| Package | Gift Box |
| Warranty | 1 Year |
Dual-Tip Tool Configuration
The ZD-409 Tweezer Soldering Iron uses a dual-tip tweezer format for SMD rework and desoldering work.
Key Features
- Targeted Heating: The dual-tip tweezer design is intended to heat the selected component directly during SMD rework.
- Ceramic Heating: The ZD-409 uses a ceramic heating element.
- Desoldering and SMD Rework: Suitable for desoldering connections, removing capacitors, and working with SOP components.
- Replacement Tips: Optional TIP 409 Long Life tip configurations are available.
- 24V Station Compatibility: The 24V version is compatible with ZD-931, ZD-937, and ZD-929 soldering stations. Standalone 110–130V and 220–240V versions are also available.
- Compliance: CE, GS, TÜV, and RoHS are listed for this product.
Electrical Configurations
| Code | Voltage | Power |
|---|---|---|
| 88-4092 | 24V | 25W (48W max) |
| 88-4093 | 110–130V | 48W |
| 88-4094 | 220–240V | 48W |
Supported Components and Tip Formats
Spare Tips
| Code | Model | Note |
|---|---|---|
| 79-8402 | TIP 409-02 | Long Life |
| 79-8403 | TIP 409-03 | |
| 79-8405 | TIP 409-05 | |
| 79-8410 | TIP 409-10 | |
| 79-8415 | TIP 409-15 | |
| 79-8420 | TIP 409-20 | |
| 79-8430 | TIP 409-30 |
The optional Long Life tip range covers 2 mm to 30 mm configurations.
Control and Rework Applications
The 24V ZD-409 configuration is intended for use with compatible ZD-931, ZD-937, and ZD-929 soldering stations.
The standalone 110–130V and 220–240V versions are available for SMD rework and desoldering applications, including work involving capacitors and SOP components.
Product Enquiry
Packaging Details
| Package | Q’ty/ctn | Carton Size | N.W. | G.W. |
|---|---|---|---|---|
| Gift box | 50 sets | 35 × 28 × 43 cm | 13 kg | 14 kg |
