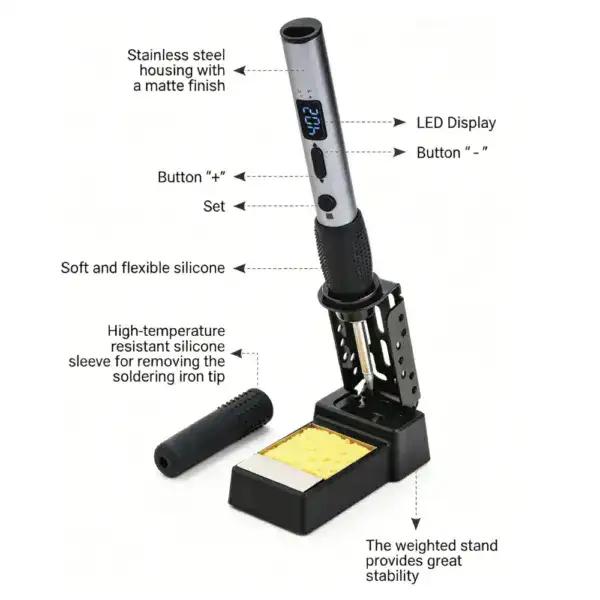

USB-C Soldering Iron
ZD-451
Features
- USB-C soldering iron, PD/QC support
- 60W fast heating, 160–480°C range
- Smart LED display & temperature control
- Premium metal housing, 62g ultra-portable
- Auto-adapts to PD adapter voltage
| Parameter | Specification |
|---|---|
| Power | 60W MAX |
| Input Voltage | DC 9-20V |
| Temperature Range | 160°C – 480°C, adjustable |
| Display | Intelligent LED display |
| Dimensions (Iron only) | 190 × 22 mm |
| Weight (Iron only) | 62g |
| Package Type | Gift box |
| Quantity per Carton | 20 pcs |
USB-C Power Input and Profiles
Power Configuration
- Power Input: USB-C
- Supported Protocols: PD / QC
- Input Voltage: DC 9–20V
- Maximum Power: 60W
- PD Adapter Adaptation: Automatically adapts to the output voltage of the connected PD adapter.
- Included Cable: 1 × PD cable
Supply Options
| Code | Input Voltage | Power | Note |
|---|---|---|---|
| 88-4511 | DC 9–20V | 60W MAX | Without PD adapter |
| 88-4512 | DC 9–20V | 60W MAX | With PD adapter |
Temperature, Tips and Included Accessories
Temperature Control
- Temperature Range: 160–480°C, adjustable
- Display: Intelligent LED display
- Display and Settings: Displays temperature and supports settings for sleep time, sleep temperature, and input voltage.
- Dimensions (Iron only): 190 × 22 mm
- Weight (Iron only): 62 g
- Compliance: CE and RoHS
Optional Spare Tips
| Code | Configuration |
|---|---|
| 79-0031 | 2 in 1 non-detachable heater with tip |
| 79-0032 | |
| 79-0033 | |
| 79-0034 |
Specify a Portable-Iron Requirement
Packaging Details
| Code | Package | Q’ty/ctn | Carton Size | N.W. | G.W. |
|---|---|---|---|---|---|
| ZD-451 | Gift box | 20 pcs | 37.5 × 21.5 × 25 cm | 5.5 kg | 6 kg |
Order Requirements
Please provide the required destination market, power bundle, optional tip requirement, package requirement, quantity, and compliance-document requirement when submitting an inquiry.
Request a Quote Now!
- Two-year warranty from receipt of the BL
- Missing parts: free replacement
- 24×7 technical service standing by
