Wholesale 2 in 1 Soldering Station
ZD-8912
Features
- 2 in 1 soldering iron & hot air station
- Temperature range 160–480°C, adjustable air 3–24 L/min
- Dual LCD display, °C/°F switchable
- Microprocessor-controlled, ESD-safe versions available
- CE/GS/RoHS certified, complete spare parts included

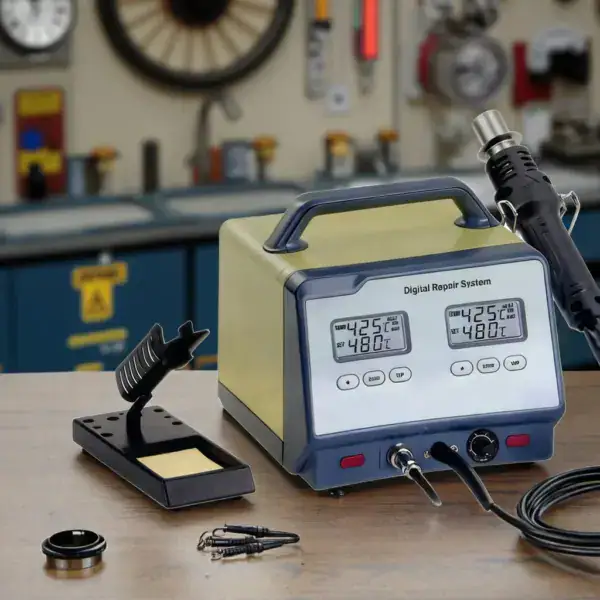

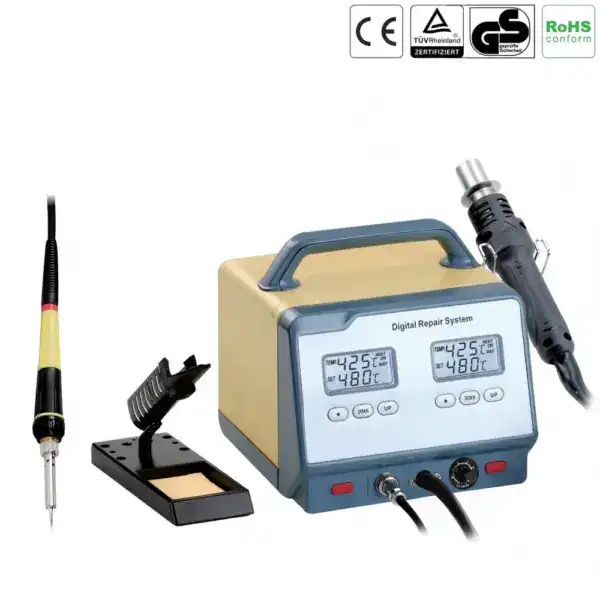

Wholesale 2 in 1 Soldering Station ZD-8912 — a professional SMD hot air rework station combining a soldering iron and hot air pump, ideal for soldering and desoldering all types of surface-mounted ICs, PCBs, and components.
Features:
- Dual LCD display showing current & set temperature (°C/°F)
- Push-button temp adjustment, adjustable hot air volume (3–24 L/min)
- Microprocessor-controlled temperature range 160–480°C
- User-friendly ergonomic handle
- Sleep & non-sleep function versions available
Specifications:
|
Code
|
Voltage
|
Note
|
|---|---|---|
|
89-1221
|
110-130V
|
—
|
|
89-1222
|
220-240V
|
—
|
|
89-1223
|
110-130V
|
ESD
|
|
89-1224
|
220-240V
|
ESD
|
Included Nozzles:
79-3901, 79-3907, 79-3902, 79-3903, 79-3941, 79-3942, 79-3940
Spare Soldering Iron:
|
Model
|
Code
|
Voltage
|
Power
|
Note
|
|---|---|---|---|---|
|
ZD-418A
|
88-4181
|
24V
|
60W (Heat up 130W)
|
4 pins, no sleep function
|
|
ZD-418BB
|
88-4182
|
24V
|
60W (Heat up 130W)
|
6 pins, with sleep function
|
Spare Tips for Soldering Iron:
|
Code
|
Model
|
Note
|
|---|---|---|
|
79-1916
|
TIP N9-1
|
—
|
|
79-1926
|
TIP N9-2
|
High Quality
|
|
79-1936
|
TIP N9-3
|
High Quality
|
|
79-1946
|
TIP N9-4
|
—
|
|
79-1956
|
TIP N9-5
|
—
|
Spare Heater:
|
Code
|
Voltage
|
Power
|
Use For
|
Note
|
|---|---|---|---|---|
|
79-939A
|
110-130V
|
320W
|
ZD-8912
|
With temperature probe
|
|
79-939B
|
220-240V
|
320W
|
ZD-8912
|
With temperature probe
|
Spare Sponge:
Code 79-7305 — Size 65×50mm
Packaging:
|
Model
|
Package
|
Qty/Ctn
|
Carton Size
|
N.W.
|
G.W.
|
|---|---|---|---|---|---|
|
ZD-8912
|
Gift Box
|
1 set
|
36×29×26cm
|
5kg
|
6kg
|
|
Input Voltage
|
110-130V / 220-240V
|
|
Maximum Temperature
|
480°C
|
|
Power Source
|
Plug Powered
|
|
Usage
|
Soldering and Desoldering
|
|
Weight
|
5 kg
|
|
Packaging Type
|
Gift Box
|
|
Selling Unit
|
Single Item
|
